  13. 240VAC Reversing Magnetic Contactor 3P 18A NEMA 0

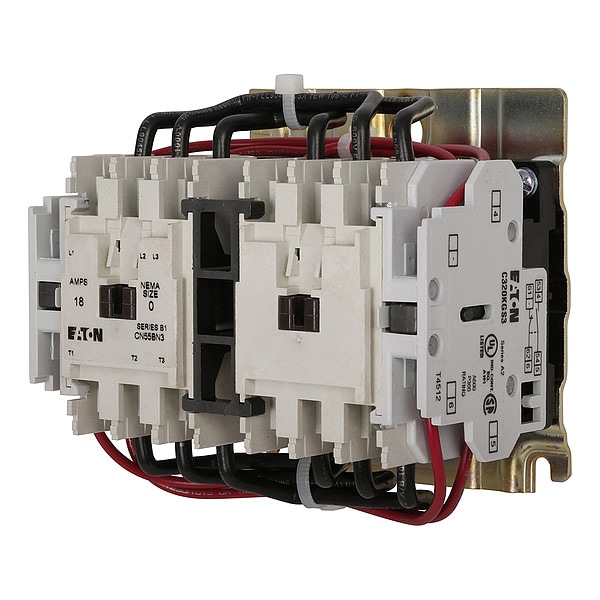

Eaton 240VAC Reversing Magnetic Contactor 3P 18A NEMA 0 CN55BN3BB - main

240VAC Reversing Magnetic Contactor 3P 18A NEMA 0

  • Mfr # CN55BN3BB

  • Zoro # G3690093

product price: $1,396.99
/ea
Free Shipping & Returns

Key Features

Full Load Amps
18 A
Action
Reversing
Number of Poles
3
NEMA Contactor Size
0
Coil Volts
240V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CN55BN3BB
Zoro #
G3690093
UPC #
782113781334
Country of Origin
Dominican Republic

Dimensions

NEMA Contactor Size
0
Height
5.1 in
Width
5.3 in
Depth
5.7 in
NEMA Size
0
Product Width
1.75 in
Size
0
Product Length/Depth
3.49 in
Product Height
3.88 in
Mounting Hole Distance - Height
3.38 in
Overall Height
3.88 in
Overall Width
1.75 in
Mounting Hole Diameter
0.25 in
Frame Size
B
Mounting Hole Distance - Width
1.5 in
Overall Depth
3.49 in

Details

Item
Magnetic Contactor
Full Load Amps
18 A
Action
Reversing
Number of Poles
3
Coil Volts
240V AC
Reversing
Yes
HP @ 1 Phase - 120V
1 hp
HP @ 1 Phase - 240V
2 hp
HP @ 3 Phase - 208V
3 hp
HP @ 3 Phase - 240V
3 hp
HP @ 3 Phase - 575V
5 hp
Enclosure NEMA Rating
No Enclosure
HP @ 3 Phase - 480V
5 hp
Frame / Series / Class / Code
Series Freedom, Code A, Frame 180mm
Hz
50/60
Standards
CSA, UL Listed
Auxiliary Contact Form
1NO/1NC
Series
Freedom
Certifications
UL Listed
HP rating - max
1 hp at 115V, 2 hp at 230V, 3 hp at 208,240V, 5 hp at 480,600V
Amperage Rating
18A
Phase
Three
Product Name
Eaton Freedom NEMA motor control contactor
Resistance Properties
Impact Resistant, Temperature Resistant
Embedded Surge Suppressor
No
Horsepower @ Single Phase - 240V AC
2 hp
Terminal Connection Type
Screw Terminals
Number of Auxillary Contacts
2
NEMA Enclosure Rating
No Enclosure
Horsepower @ Single Phase - 120V AC
1 hp
Mounting Postion
Horizontal, Vertical
Reversing Capability
Reversing
Horsepower @ Three Phase - 600V AC
5 hp
Contactor Style
NEMA
Electrical Operating Durability
3,000,000
Includes Auxiliary Contacts
Yes
Horsepower @ Three Phase - 480V AC
5 hp
Horsepower @ Three Phase - 240V AC
3 hp
Full Load Current - Inductive
18 A
Frequency
50/60 Hz
Coil Voltage
220/240V AC
Horsepower @ Three Phase - 208V AC
3 hp
Mounting Style
Panel

Description

NEMA Magnetic Contactor, Auxiliary Contact Form 1NO/1NC, NEMA Enclosure Rating No Enclosure, NEMA Size 0, Coil Voltage 220/240V AC, Number of Poles 3, Full Load Current - Inductive 18 A, Reversing Capability Reversing, Overall Height 3.88 in, Overall Width 1.75 in, Terminal Connection Type Screw Terminals, Frame Size B, Mounting Style Panel, Series Freedom, Number of Auxillary Contacts 2, Contactor Style NEMA, Horsepower @ Three Phase - 240V AC 3 hp, Horsepower @ Three Phase - 480V AC 5 hp
