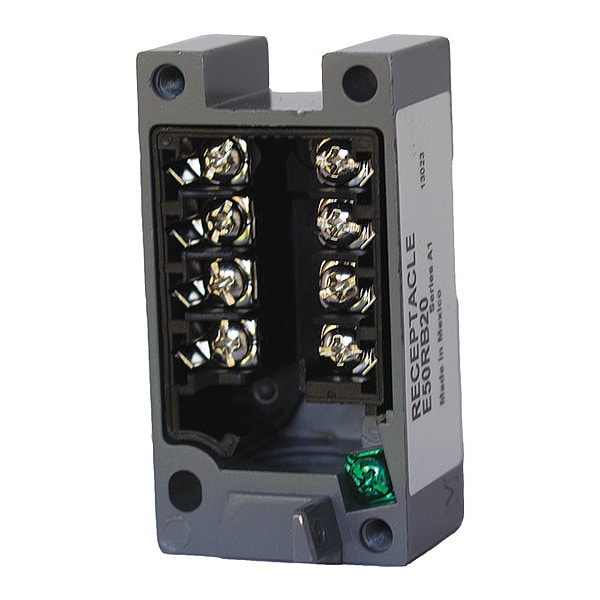

Eaton 2NC/2NO Limit Switch Receptacle E50RB20 - main

2NC/2NO Limit Switch Receptacle

  • Mfr # E50RB20

  • Zoro # G5232875

product price: $60.19
/ea

Key Features

For Use With
Mfr. No. E50
Conduit Size
20mm
Body Material
Zinc Die Cast
Material of Construction
Zinc Die Cast
Contact Form
2NO/2NC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
E50RB20
Zoro #
G5232875
UPC #
782113107189
Country of Origin
Mexico

Dimensions

Conduit Size
20mm
Product Width
1.54 in
Product Height
1.06 in
Product Length/Depth
2.92 in
Overall Depth
2.92 in
Overall Length
2.92 in
Manufacturer Warranty Length
1 yr
Conduit Connection Size
20 mm
Mounting Hole Diameter
0.2 in
Overall Width
1.54 in

Details

Item
Limit Switch Receptacle
For Use With
Mfr. No. E50
Body Material
Zinc Die Cast
Material of Construction
Zinc Die Cast
Contact Form
2NO/2NC
IP Rating
67
Standards
CSA, UL Listed
Product Type
Limit Switch Receptacle
Electrical Connection
Screw Terminal
Material
Zinc
Enclosure material
Die cast zinc
Operating temperature - min
-40°F
Series
E50 heavy duty plug in
Certifications
UL Recognized
Environmental rating
NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
Connection
Screw terminal
Number Of Poles
Two-pole
Operating temperature - max
250°F
Mounting method
Surface
Compatible with Series
E50
Body Configuration
Plug-In
Mounting Style
Diagonal Side
Mounting Hole Vertical Center to Center Distance
60 mm
Operating Temperature - Maximum
250 Degrees F
Conduit Connection Type
BSP
Mounting Hole Horizontal Center to Center Distance
30 mm
NEMA Enclosure Rating
1, 13, 3, 3S, 4, 4X, 6, 6P
Compatible with Manufacturer Model Number
E50SB, E50SBL, E50SBN, E50SCL
Number of Mounting Holes
2
Operating Temperature - Minimum
-40 Degrees F
Compatible Manufacturer Part Number
E50SB, E50SBL, E50SBN, E50SCL
Compatible Manufacturer Model Number
E50SB, E50SBL, E50SBN, E50SCL
Compatible with Manufacturer Model No.
E50SB, E50SBL, E50SBN, E50SCL
Compatible with Mfr. Model No.
E50SB, E50SBL, E50SBN, E50SCL
For Use with Mfr Model Number
E50SB, E50SBL, E50SBN, E50SCL
For Use With Mfr. Model Number
E50SB, E50SBL, E50SBN, E50SCL
Compatible Pump Manufacturer Part Number
E50SB, E50SBL, E50SBN, E50SCL
Compatible Mfr. Model Number
E50SB, E50SBL, E50SBN, E50SCL

Description

Limit Switch Receptacle, Contact Form 2NO/2NC, Material of Construction Zinc Die Cast, Conduit Size 20mm, For Use With Mfr. No. E50
