This item is Discontinued.

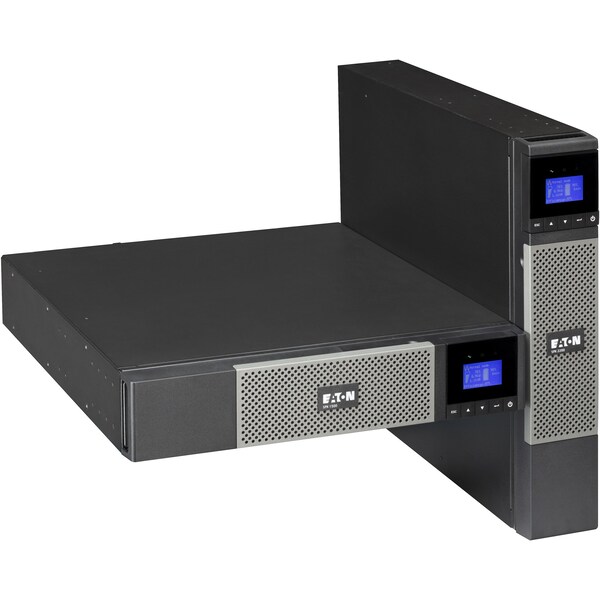

Eaton 5Px3000Irt2U + Network-Ms 5PX3000IRTN

5Px3000Irt2U + Network-Ms (Discontinued)

  • Mfr # 5PX3000IRTN
  • Zoro # G0443102
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5PX3000IRTN
Zoro #
G0443102
UPC #
743172035950
Country of Origin
Unknown

Dimensions

Product Length/Depth
441 mm
Product Height
86.2 mm
Product Width
647 mm
Input Cord Length
1.8m

Details

Wattage
2700 W
Battery Type
Lead-acid maintenance-free (replaceable)
Voltage
230V
Color
Black/silver
Auto shutdown function
Yes
Construction type
482.6 mm (19 inch) device
Extended Battery Capability
Yes
User interface
Multilingual graphical LCD display
Expansion Slots
One slot, network card included
Receptacle
(8) C13, (1) C19
Altitude
3000 m
Battery replacement
User replaceable
Nominal Frequency
50-60 Hz
Input Frequency Range
47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low sensitivity mode
Input Nominal Voltage
230V default (200/208/220/230/240V)
Battery Quantity
6
Certifications
IEC/EN 62040-1
Battery management
ABM & Temperature compensated charging method (user selectable), Automatic battery test, deep discharge protection, automatic recognition of external battery units
Software Compatibility
Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
Output Voltage Range
230 V (+6%/-10%)
Output Power Factor
0.9
Phase (Output)
1
VA rating
3000 VA
Phase (Input)
1
Communication
USB port (HID compliant)|Serial port (RS232)|Mini-terminal block for remote On/Off and Remote Power Off|Dry contacts (2 outputs, optocoupler, RJ)|Network card
Includes network card
Yes
Feed type
1
Rack Mounting Kit
Yes
Package Contents
Network Management Card|Input cable|Rack-mounting kit|(2) Supports for tower mounting|Cable locking system|USB cable|Serial cable|(2) IEC-IEC cables|Quickstart guide|Safety instructions
BTU Rating
Online: 277
Noise level
<40 dB at 1 meter
Potential free switch contact
Yes
Input voltage range
160-294 V (adjustable to 150 V-294 V)
Topology
Line-interactive
Input connection
C20
Compliances
CE Marked
Relative Humidity
0-90% non-condensing
Output Waveform
Sine wave
Efficiency
97
Temperature range
0-90% non-condensing
Enclosure
Black/silver
Battery Rating
12 V / 9 Ah
Output nominal voltage
230V default (200/208/220/230/240V)
Ethernet Interface
Yes

Restrictions

This item has been restricted from sale in the following states: CA
