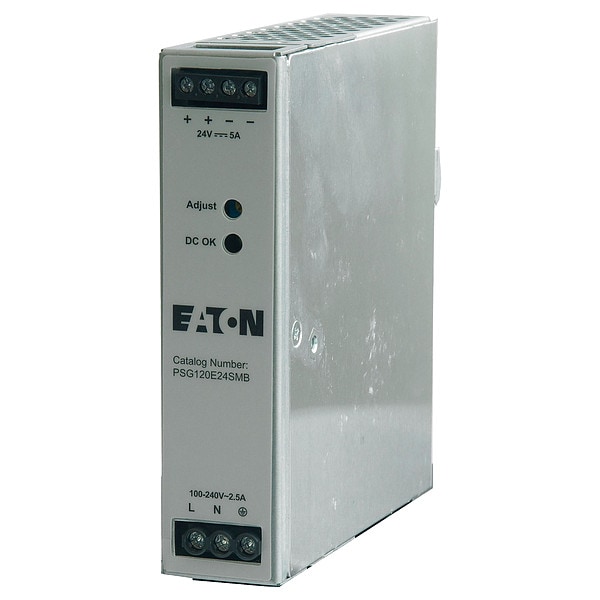

Eaton AC to DC Power Supply, 100/240V AC, 24V DC, 120 W, 5 A, DIN Rail PSG120E24SMB - main

AC to DC Power Supply, 100/240V AC, 24V DC, 120 W, 5 A, DIN Rail

  • Mfr # PSG120E24SMB

  • Zoro # G711208914

product price: $314.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
100/240V AC
Output Voltage - Nominal
24V DC
Output Power - Rated
120 W
Current - Output
5 A
Mounting
DIN Rail
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PSG120E24SMB
Zoro #
G711208914
UPC #
786689791926
Country of Origin
India

Dimensions

Overall Height
3 m
Overall Width
12.37 cm
Overall Depth
11.68 m
Height
12.37 cm
Width
3 m
Depth
11.68 m

Details

Item
AC to DC Power Supply
Input Voltage
100/240V AC
Output Voltage - Nominal
24V DC
Output Power - Rated
120 W
Current - Output
5 A
Mounting
DIN Rail
Housing Material
Metal
Phase
Single
Power Supply Style
Switching
Phase - Electrical
Single
Series
PSG
Style
Switching
Output Amps
5A
Output Voltage
24V DC
IP Rating
IP20
Hz
50/60 Hz
Case Material
Aluminum Case
Status Indicator
Red LED
Standards
CE, cUL, cULus/UL 60950-1, EN, IEC, RoHS Compliant
Power Rating
120W
Compliances
CE Marked; German Safety
Certifications
EN Listed; cULus/UL 60950-1; IEC Rated; cUL Recognized
Operating Temperature - Maximum
176 Degrees F
Mean Time Between Failures (MTBF)
7,000,000 hr
Manufacturer Warranty
3 yr
Operating Temperature - Minimum
-13 Degrees F
Start Up Time - Maximum
500 msec
Wire Connection Type
Screw Terminals
Maximum Efficiency @ 230V AC
88.5 %
Current - Inrush
35 A

Description

DC Power Supply, Input Voltage 100 to 240V AC, Mounting DIN Rail, Series PSG, IP Rating IP20, Status Indicator Red LED, Standards CE, cUL, cULus/UL 60950-1, EN, IEC, RoHS Compliant
