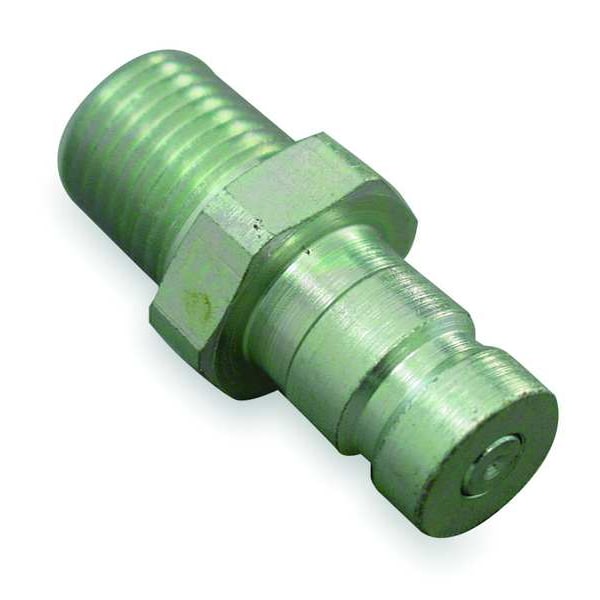

Eaton Aeroquip Hydraulic Quick Connect Hose Coupling, Steel Body, Push-to-Connect Lock, 1/4"-18 Thread Size FD90-1012-04-04 - main

Hydraulic Quick Connect Hose Coupling, Steel Body, Push-to-Connect Lock, 1/4"-18 Thread Size

  • Mfr # FD90-1012-04-04

  • Zoro # G1172017

product price:  $17.79
/ea

Key Features

Body Material
Steel
Seal Material
Nitrile
Coupling Locking Type
Push-to-Connect
Max. Pressure
7000 psi
Thread Size
1/4"-18
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
FD90-1012-04-04
Zoro #
G1172017
UPC #
-
Country of Origin
United States

Dimensions

Thread Size
1/4"-18
Coupler Body Size
1/4"
Coupler Thread Size
1/4"-18
Overall Length
1 1/2 in
Coupling Size
1/4 in

Details

Item
Hydraulic Quick Connect Hose Coupling
Body Material
Steel
Seal Material
Nitrile
Coupling Locking Type
Push-to-Connect
Max. Pressure
7000 psi
Connection Type
NPT
Shut Off
Doble
For Use With
Diagnostic Testing
Sleeve Material
Steel
Series
FD90
Quick Coupler Type
Hydraulic Coupler Nipple
Parker Interchange
PD343
Coupler Interchange Type
FD90
Coupler Connection Type
MNPT
Valve Design
Tubular
Locking Mechanism
Push and Pull
Bearing Material
Stainless Steel
Seal Type
Flush Face
Standards
SAE J1502
Coupler Body Material
Steel
Coupler Finish
Plain
Coupler Flow Rate
0.5 gpm
Operating Temp. Range
-40 Degrees to 250 Degrees F
Maximum Vacuum
28 in Hg
Includes Bearing
Yes
Includes Shut Off
Yes
Valve Type
Tubular
Fitting Type
MNPT
Pull Ring Material
PTFE
Max. Working Pressure @ 70 F
7,000 psi
Weatherhead Interchange
FD90-1012-04-04
Coupling Component
Plug
Hose Fitting Gender
Male
Finish/Coating
Plain
Includes Valve
Yes
Max. Flow Rate
1.89 lpm

Description

Hydraulic Quick Connect Hose Coupling, Plug, FD90 Series, Steel, Coupling Size 1/4 in, Male, Max. Working Pressure @ 70 F 7,000 psi, Max. Flow Rate 1.89 lpm
