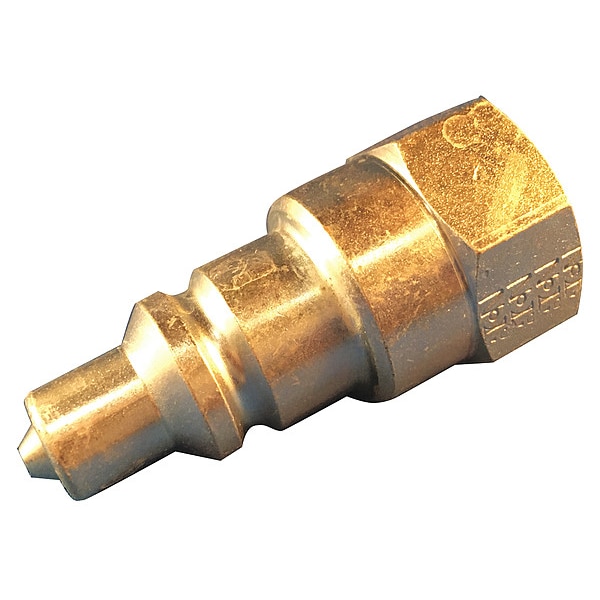

Eaton Aeroquip Hydraulic Quick Connect Hose Coupling, Steel Body, Push-to-Connect Lock, 3/8"-18 Thread Size FD35-1002-06-06 - main

Hydraulic Quick Connect Hose Coupling, Steel Body, Push-to-Connect Lock, 3/8"-18 Thread Size

  • Mfr # FD35-1002-06-06

  • Zoro # G0610855

product price:  $61.39
/ea

Key Features

Body Material
Steel
Seal Material
Fluorocarbon
Coupling Locking Type
Push-to-Connect
Max. Pressure
10,000 psi
Thread Size
3/8"-18
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
FD35-1002-06-06
Zoro #
G0610855
UPC #
-
Country of Origin
United States

Dimensions

Thread Size
3/8"-18
Length
2-1/8"
Overall Length
2 1/8 in
Coupler Body Size
3/8"
Coupler Thread Size
3/8"-18
Coupling Size
3/8 in

Details

Item
Hydraulic Quick Connect Hose Coupling
Body Material
Steel
Seal Material
Fluorocarbon
Coupling Locking Type
Push-to-Connect
Max. Pressure
10,000 psi
Connection Type
NPT
Shut Off
Double
For Use With
FD35 Series Couplers
Sleeve Material
Carbon Steel
Series
FD35
Coupler Flow Rate
2.0 gpm
Coupler Body Material
Carbon Steel
Coupler Interchange Type
HTMA
Coupler Finish
Trivalent Chromium Zinc
Locking Mechanism
Push and Pull
Bearing Material
Stainless Steel
Valve Design
Poppet
Seal Type
Ball and O-Ring
Coupler Connection Type
FNPT
Operating Temp. Range
-4 Degrees to 392 Degrees F
Coupling Component
Plug
Max. Working Pressure @ 70 F
10,000 psi
Includes Shut Off
Yes
Includes Valve
Yes
Finish/Coating
Trivalent Chromium Zinc
Fitting Type
FNPT
Includes Bearing
Yes
Hose Fitting Gender
Female
Valve Type
Poppet
Maximum Vacuum
28 in Hg
Pull Ring Material
PTFE
Max. Flow Rate
7.57 lpm

Description

Hydraulic Quick Connect Hose Coupling, Plug, FD35 Series, Steel, Coupling Size 3/8 in, Female, Max. Working Pressure @ 70 F 10,000 psi, Max. Flow Rate 7.57 lpm
