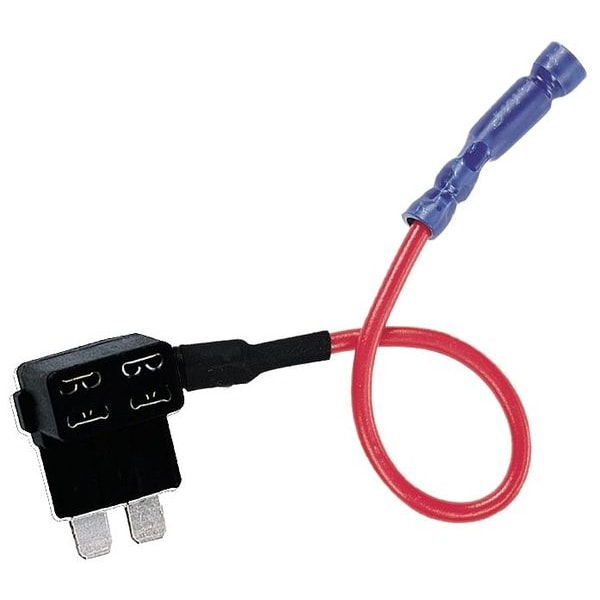

Fuse Holder, 1 Poles, 0 to 10A Amp Range, 32V AC/DC Volt Rating
- Mfr # BP/HHH-RP
- Zoro # G2228694
product price:Â
$
29.19
/ea
Key Features
Series
BP
Number of Poles
1
Amp Range
0 to 10A
Connector Type
Wire Leads with Crimp
Mounting Style
Inline
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- BP/HHH-RP
- Zoro #
- G2228694
- UPC #
- 051712182522
- Country of Origin
- Taiwan, Province of China
- Item
- Fuse Holder
- Series
- BP
- Number of Poles
- 1
- Amp Range
- 0 to 10A
- Voltage Rating
- 12V DC
- Connector Type
- Wire Leads with Crimp
- Mounting Style
- Inline
- Visual Indication
- Non-Indicating
- Fuse Block Style
- Non-Rejection
- Fuse Block Design
- Open
- Body Material
- Plastic
- For Use With
- ATM Fuses
- For Fuse Class
- Not Class Rated
- Fuse UL Class
- Not Class Rated
- Fits Fuse Type
- Automotive
- Max. Amps
- 10A
- Fits Fuse Block Style
- Non-Rejection
- Wire Range
- 16 AWG
- Max. Voltage
- 32V AC/DC
- Current - Minimum
- 0 A
- DC Voltage Rating
- 12 V DC
- Current - Maximum
- 10 A
Dimensions
- Wire Size
- 16 AWG
- Width
- 1.60 in
- For Fuse Size
- 3/4 in L x 3/4 in W x 13/64 in dia
- Wire Length
- 5 in
- Overall Width
- 1.6 in
- For Fuse Length
- 7/16 in
- Overall Length
- 5 in
- Wire Rope Length
- 5 in
- Length
- 5 in
Description
In-Line Fuse Holder, Fits Fuse Type Automotive, Fuse UL Class Not Class Rated, 0 to 10 A, Number of Poles 1, 12V DC, For Fuse Size 3/4 in L x 3/4 in W x 13/64 in D, Compatible Fuse Series 297, AF2, ATM, Series BP, Non-Indicating, Non-Rejection, Fuse Block Design Open, Wire Size 16 AWG, Wire Length 5 in, Mounting Style Inline, Body Material Plastic, Connector Type Wire Leads with Crimp, Body Width 1.6 in, Body Length 0.3 in
