Shop EATON BUSSMANN

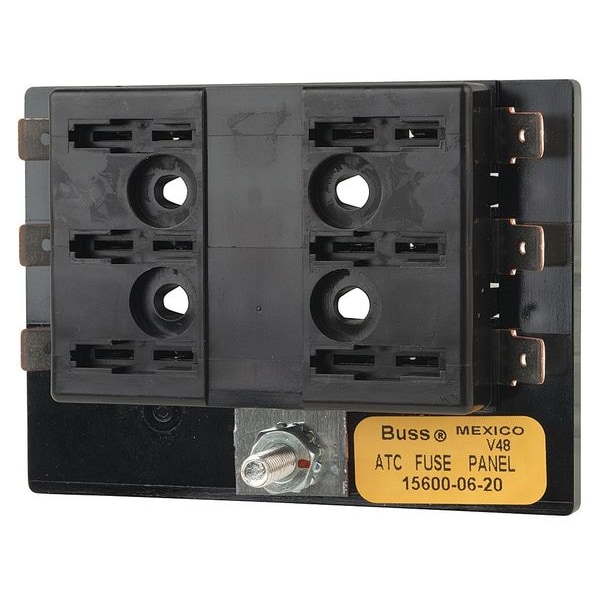

Fuse Panel, 0 to 30A Amp Range, 32V DC Volt Rating, 6 Poles, Quick Connect, Automotive Fuse Type

  • Mfr # 15600-06-20

  • Zoro # G0948656

product price:
$
29.38
/ea

Key Features

Amp Range
0 to 30A
Voltage Rating
32V DC
Number of Poles
6
Connector Type
Quick Connect
Fits Fuse Type
Automotive
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
15600-06-20
Zoro #
G0948656
UPC #
051712813006
Country of Origin
Mexico
Item
Fuse Panel
Amp Range
0 to 30A
Voltage Rating
32V DC
Number of Poles
6
Connector Type
Quick Connect
Fits Fuse Type
Automotive
Mounting Style
Bolt-Down
Fuse Block Design
Open
Fuse UL Class
Not Class Rated
For Fuse Series
ATC
Series
15600
Fuse Block or Fuse Holder Type
Fuse Block
Fuse Type
Automotive
Body Material
Thermoplastic
Visual Indication
Non-Indicating
Wire Range
16 AWG to 12 AWG, 6 AWG to 4 AWG
Weight
.11 LB
Max. Amps
30 A
For Fuse Class
Not Class Rated
Fits Fuse Block Style
Non-Rejection
Max. Voltage
32V DC
Fuse Block Style
Non-Rejection
Current - Maximum
30 A
Current - Minimum
0 A
DC Voltage Rating
32 V DC

Description

Fuse Block, Fits Fuse Type Automotive, Fuse UL Class Not Class Rated, 0 to 30 A, Number of Poles 6, 32V DC, For Fuse Size 3/4 in L x 3/4 in W x 13/64 in D, Compatible Fuse Series 257, AF, ATC, Series 15600, Non-Indicating, Non-Rejection, Fuse Block Design Open, Wire Range 16 to 12 AWG (output), 6 to 4 AWG (input), Mounting Style Bolt-Down, Body Material Thermoplastic, Connector Type Quick Connect, Height 0.72 in, Width 0.2 in, Length 0.77 in
