Shop EATON BUSSMANN
See all product information

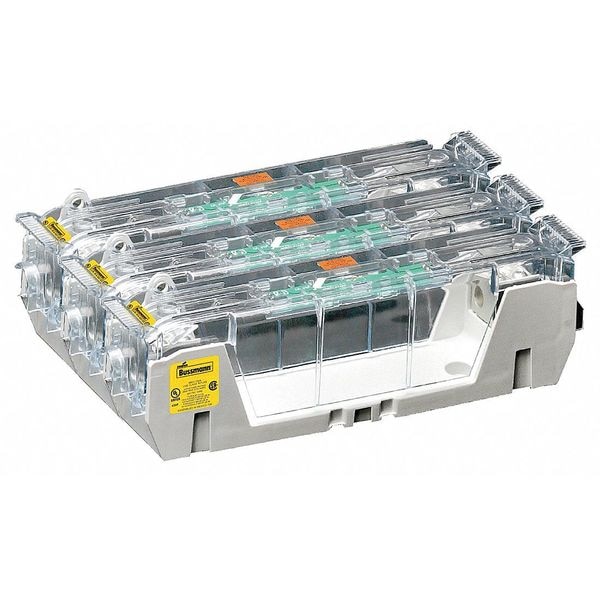

Open Fuse Block, H; K5 UL Class, 600V AC/DC Volt Rating, 3 Poles, Box Lug
Mfr # HM60100-3CR
Zoro # G2590555
product price:Â $150.99
/ea
Free Shipping & Returns
Key Features
UL Class
H; K5
Series
HM
Number of Poles
3
Amp Range
70 to 100A
Connector Type
Box Lug
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- HM60100-3CR
- Zoro #
- G2590555
- UPC #
- 051712391177
- Country of Origin
- Mexico
Dimensions
- Wire Size
- 14 to 1 AWG
- Length
- 8.70 in
- Height
- 2.80 in
- Width
- 6 in
- For Fuse Size
- 7-15/16 in L x 1-5/16 in dia
- Wire Size - Maximum
- 1 AWG
- For Fuse Diameter
- 1 1/8 in
- Overall Width
- 6 in
- Overall Height
- 2.8 in
- Overall Length
- 8.7 in
- Wire Size - Minimum
- 14 AWG
- For Fuse Length
- 7 7/8 in
Description
Fuse Block, Fits Fuse Type Class H, Class K5, Fuse UL Class H, K5, 61 to 100 A, Number of Poles 3, 600V AC, For Fuse Size 7 15/16 in L x 1 5/16 in dia, Compatible Fuse Series NLS, NOS, OTS, RES, RFS, RLS, Series HM, Non-Indicating, Non-Rejection, Fuse Block Design Open, Wire Range 14 to 1 AWG, Mounting Style Bolt-Down, Body Material Thermoplastic, Connector Type Box Lug, Height 2.8 in, Width 6 in, Length 8.7 in, Spring Reinforced Clip Yes, Standards CSA Certified, UL Listed
