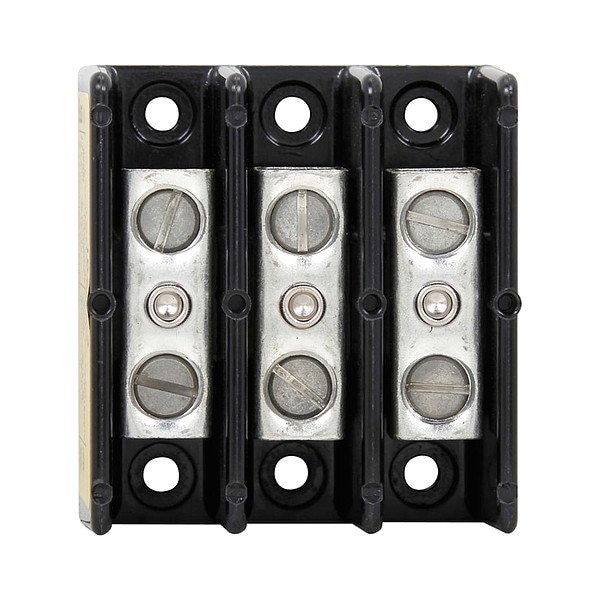

PowerDistributionBlock, 150A, 600V, 3Poles
Mfr # 16201-3
Zoro # G521827824
product price:Â
$
141.99
/ea
Free Shipping & Returns
Key Features
Maximum Current - Aluminum Conductor
150 A
For Load Copper Wire Size - Minimum
14 AWG
Housing Color
Black
Overall Width
2.62 in
Wire Rope Length
2.82 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 16201-3
- Zoro #
- G521827824
- UPC #
- 051712148566
- Country of Origin
- Mexico
- Maximum Current - Aluminum Conductor
- 150 A
- Housing Color
- Black
- For Conductor Material
- Aluminum, Copper
- Maximum Current - Copper Conductor
- 150 A
- Line Side Connection Type
- Lug
- Standards
- RoHS
- Maximum Voltage
- 600 V
- Load Side Connection Type
- Lug
- Line Connections/Pole
- 1
- Primary Wire Range
- 1/0 to 3 AWG Cu, 14 to 10 AWG Cu, 6 to 4 AWG Cu, 8 AWG Cu
- Load Connections/Pole
- 1
- Power Distribution Block Design
- Open
- Item
- Power Distribution Block
- Terminal Material
- Aluminum
- UL 94 Flammability Rating
- V-0
- Special Features
- Higher Temperature Rated Conductors Permitted with Appropriate Derating
- Secondary Wire Range
- 1/0 to 3 AWG Cu, 14 to 10 AWG Cu, 6 to 4 AWG Cu, 8 AWG Cu
- Series
- 162
- Number of Poles
- 3
- Housing Material
- Thermoplastic
Description
BUSS POWER BLOCK
