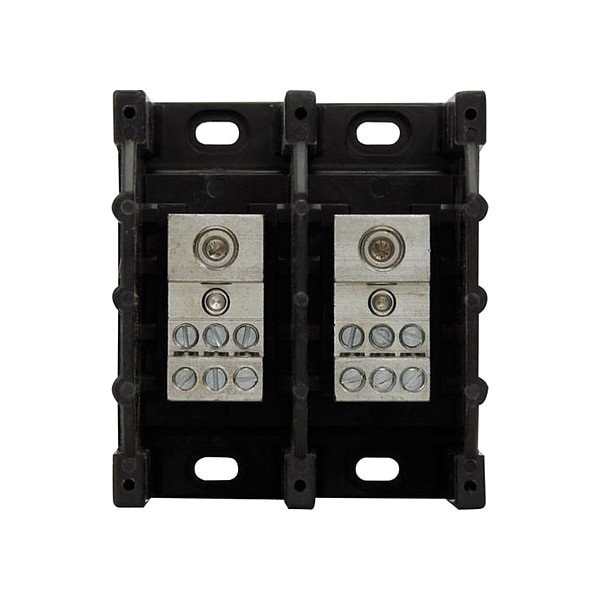

PowerDistributionBlock, 175A, 600V, 2Poles
- Mfr # PDB321-2
- Zoro # G922605045
product price:Â
$
310.99
/ea
Free Shipping & Returns
Key Features
Maximum Current - Copper Conductor
175 A
Overall Width
3.62 in
Primary Wire Range
12 to 10 AWG Al, 14 to 10 AWG Cu, 2/0 to 1 AWG, 3 to 2 AWG, 8 to 4 AWG
Line Connections/Pole
2
Secondary Wire Range
12 to 10 AWG Al, 14 to 10 AWG Cu, 6 to 4 AWG, 8 AWG Al
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- PDB321-2
- Zoro #
- G922605045
- UPC #
- 051712637855
- Country of Origin
- Mexico
- Maximum Current - Copper Conductor
- 175 A
- Primary Wire Range
- 12 to 10 AWG Al, 14 to 10 AWG Cu, 2/0 to 1 AWG, 3 to 2 AWG, 8 to 4 AWG
- Item
- Power Distribution Block
- Line Connections/Pole
- 2
- Secondary Wire Range
- 12 to 10 AWG Al, 14 to 10 AWG Cu, 6 to 4 AWG, 8 AWG Al
- UL 94 Flammability Rating
- V-0
- For Conductor Material
- Aluminum, Copper
- Maximum Voltage
- 600 V
- Terminal Material
- Aluminum
- Standards
- RoHS
- Special Features
- Higher Temperature Rated Conductors Permitted with Appropriate Derating
- Number of Poles
- 2
- Load Connections/Pole
- 6
- Maximum Current - Aluminum Conductor
- 175 A
- Line Side Connection Type
- Lug
- Series
- PDB
- Power Distribution Block Design
- Open
- Load Side Connection Type
- Lug
Dimensions
- Overall Width
- 3.62 in
- For Load Aluminum Wire Size - Minimum
- 12 AWG
- For Load Aluminum Wire Size - Maximum
- 4 AWG
- For Load Copper Wire Size - Minimum
- 14 AWG
- For Load Copper Wire Size - Maximum
- 4 AWG
- For Line Copper Wire Size - Minimum
- 14 AWG
- For Line Aluminum Wire Size - Maximum
- 12 AWG
- For Line Aluminum Wire Size - Minimum
- 12 AWG
- For Line Copper Wire Size - Maximum
- 2/0 AWG
- Wire Rope Length
- 3.95 in
- Overall Depth
- 3.2 in
- Overall Length
- 3.95 in
- Length
- 3.95 in
Description
POWER DISTRIBUTION BLOCK
