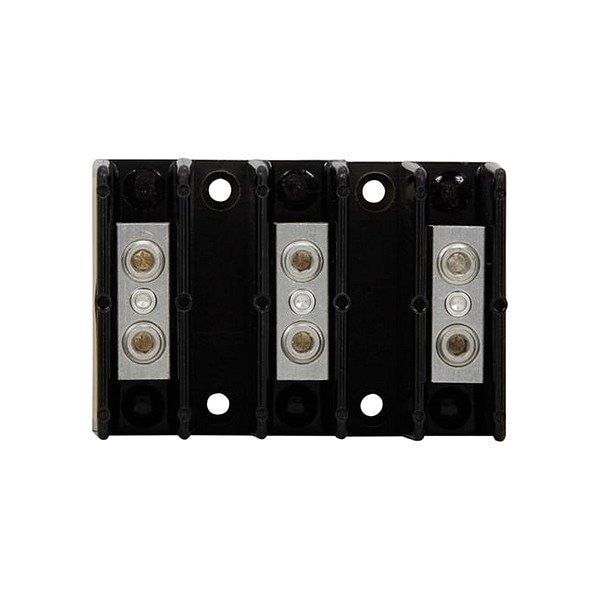

PowerDistributionBlock, 175A, 600V, 3Poles
Mfr # PDB204-3
Zoro # G721692437
product price:Â
$
106.99
/ea
Free Shipping & Returns
Key Features
Line Connections/Pole
2
Secondary Wire Range
12 to 10 AWG Al, 14 to 10 AWG Cu, 2/0 to 1 AWG, 3 to 2 AWG, 8 to 4 AWG
Primary Wire Range
12 to 10 AWG Al, 14 to 10 AWG Cu, 2/0 to 1 AWG, 3 to 2 AWG, 8 to 4 AWG
For Load Copper Wire Size - Maximum
2/0 AWG
Overall Width
4.25 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- PDB204-3
- Zoro #
- G721692437
- UPC #
- 051712637794
- Country of Origin
- Mexico
- Line Connections/Pole
- 2
- Secondary Wire Range
- 12 to 10 AWG Al, 14 to 10 AWG Cu, 2/0 to 1 AWG, 3 to 2 AWG, 8 to 4 AWG
- Primary Wire Range
- 12 to 10 AWG Al, 14 to 10 AWG Cu, 2/0 to 1 AWG, 3 to 2 AWG, 8 to 4 AWG
- Standards
- RoHS
- Terminal Material
- Aluminum
- Line Side Connection Type
- Lug
- Maximum Voltage
- 600 V
- Maximum Current - Copper Conductor
- 175 A
- Number of Poles
- 3
- Special Features
- Higher Temperature Rated Conductors Permitted with Appropriate Derating
- Item
- Power Distribution Block
- Load Connections/Pole
- 1
- Maximum Current - Aluminum Conductor
- 175 A
- Series
- PDB
- For Conductor Material
- Aluminum, Copper
- Power Distribution Block Design
- Open
- UL 94 Flammability Rating
- V-0
- Load Side Connection Type
- Lug
Description
POWER DISTRIBUTION BLOCK
