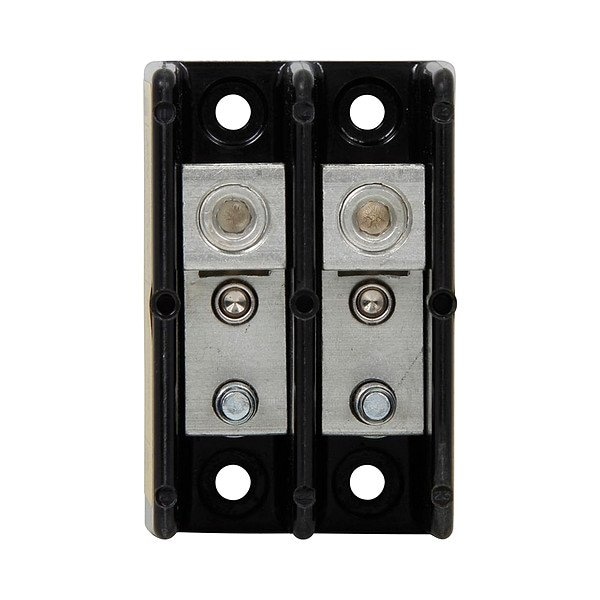

PowerDistributionBlock, 175A, 600V, 2Poles
Mfr # 16280-2
Zoro # G421692621
product price:Â
$
97.39
/ea
Key Features
Housing Material
Thermoplastic
Maximum Current - Aluminum Conductor
175 A
Special Features
Higher Temperature Rated Conductors Permitted with Appropriate Derating
Maximum Voltage
600 V
For Line Copper Wire Size - Maximum
2/0 AWG
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 16280-2
- Zoro #
- G421692621
- UPC #
- 051712181877
- Country of Origin
- Mexico
- Housing Material
- Thermoplastic
- Maximum Current - Aluminum Conductor
- 175 A
- Special Features
- Higher Temperature Rated Conductors Permitted with Appropriate Derating
- Maximum Voltage
- 600 V
- Load Side Connection Type
- Stud
- Terminal Material
- Aluminum
- Line Side Connection Type
- Lug
- Housing Color
- Black
- Line Connections/Pole
- 2
- Item
- Power Distribution Block
- For Conductor Material
- Aluminum, Copper
- Power Distribution Block Design
- Open
- Standards
- RoHS
- Maximum Current - Copper Conductor
- 175 A
- Series
- 162
- Number of Poles
- 2
- UL 94 Flammability Rating
- V-0
- Primary Wire Range
- 1 to 2/0 AWG, 14 to 10 AWG Cu, 3 to 2 AWG, 8 to 4 AWG
- Load Connections/Pole
- 1
Description
POWER DISTRIBUTION BLOCK
