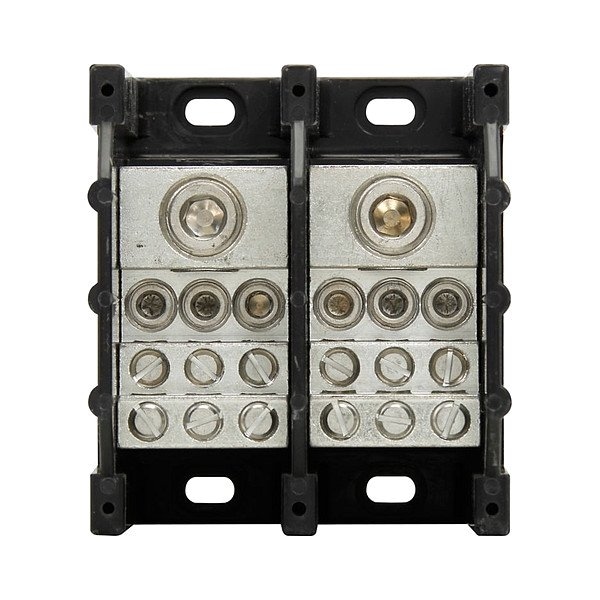

PowerDistributionBlock, 310A, 600V, 2Poles

  • Mfr # 16371-2
  • Zoro # G922605113
product price:
$
342.99
/ea
Free Shipping & Returns

Key Features

UL 94 Flammability Rating
V-0
For Line Aluminum Wire Size - Maximum
350 kcmil
Load Connections/Pole
9
Maximum Voltage
600 V
For Load Copper Wire Size - Minimum
14 AWG
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
16371-2
Zoro #
G922605113
UPC #
051712271387
Country of Origin
Mexico
UL 94 Flammability Rating
V-0
Load Connections/Pole
9
Maximum Voltage
600 V
Power Distribution Block Design
Open
Item
Power Distribution Block
Standards
RoHS
Housing Material
Thermoplastic
Terminal Material
Aluminum
Housing Color
Black
Number of Poles
2
Primary Wire Range
1/0 AWG, 2/0 AWG to 350 MCM, 6 to 1 AWG
Secondary Wire Range
1/0 to 3 AWG, 14 to 10 AWG Cu, 14 to 6 AWG Cu, 3 to 2 AWG, 6 to 4 AWG, 8 AWG, 8 to 4 AWG, 8 to 4 AWG Al
Maximum Current - Aluminum Conductor
310 A
Maximum Current - Copper Conductor
310 A
Line Connections/Pole
1
For Conductor Material
Aluminum, Copper
Series
163
Line Side Connection Type
Lug
Special Features
Higher Temperature Rated Conductors Permitted with Appropriate Derating
Load Side Connection Type
Lug

Dimensions

For Line Aluminum Wire Size - Maximum
350 kcmil
For Load Copper Wire Size - Minimum
14 AWG
For Line Aluminum Wire Size - Minimum
6 AWG
For Line Copper Wire Size - Maximum
350 kcmil
Overall Depth
3.96 in
Wire Rope Length
3.57 in
For Load Aluminum Wire Size - Maximum
2 AWG
For Line Copper Wire Size - Minimum
6 AWG
For Load Aluminum Wire Size - Minimum
8 AWG
For Load Copper Wire Size - Maximum
2 AWG
Overall Width
3.19 in
Overall Length
3.57 in
Length
3.57 in

Description

Power Distribution Blocks 18PK
