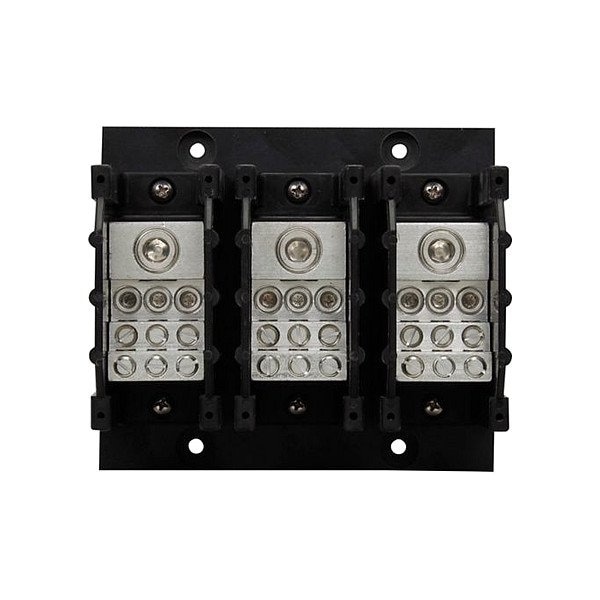

PowerDistributionBlock, 310A, 600V, 3Poles
- Mfr # PDB371-3
- Zoro # G521692668
product price:Â
$
426.99
/ea
Free Shipping & Returns
Key Features
For Load Aluminum Wire Size - Maximum
2 AWG
For Line Copper Wire Size - Maximum
350 kcmil
Standards
RoHS
Overall Width
6.25 in
For Load Copper Wire Size - Minimum
14 AWG
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- PDB371-3
- Zoro #
- G521692668
- UPC #
- 051712637831
- Country of Origin
- Mexico
- Item
- Power Distribution Block
- Standards
- RoHS
- Line Side Connection Type
- Lug
- Maximum Voltage
- 600 V
- Maximum Current - Aluminum Conductor
- 310 A
- Load Connections/Pole
- 6
- Number of Poles
- 3
- For Conductor Material
- Aluminum, Copper
- UL 94 Flammability Rating
- V-0
- Series
- PDB
- Maximum Current - Copper Conductor
- 310 A
- Special Features
- Higher Temperature Rated Conductors Permitted with Appropriate Derating
- Primary Wire Range
- 1/0 AWG, 2/0 AWG to 350 MCM, 6 to 1 AWG
- Line Connections/Pole
- 2
- Secondary Wire Range
- 12 to 10 AWG Cu, 14 AWG Cu, 14 to 6 AWG Cu, 3 to 1/0 AWG, 3 to 2 AWG, 4 AWG Cu, 6 AWG Cu, 6 to 4 Al, 6 to 4 AWG, 8 AWG, 8 AWG Cu, 8 to 4 AWG Al, 8 to 6 AWG Al
- Power Distribution Block Design
- Open
- Terminal Material
- Aluminum
- Load Side Connection Type
- Lug
Description
POWER DISTRIBUTION BLOCK
