Shop EATON BUSSMANN

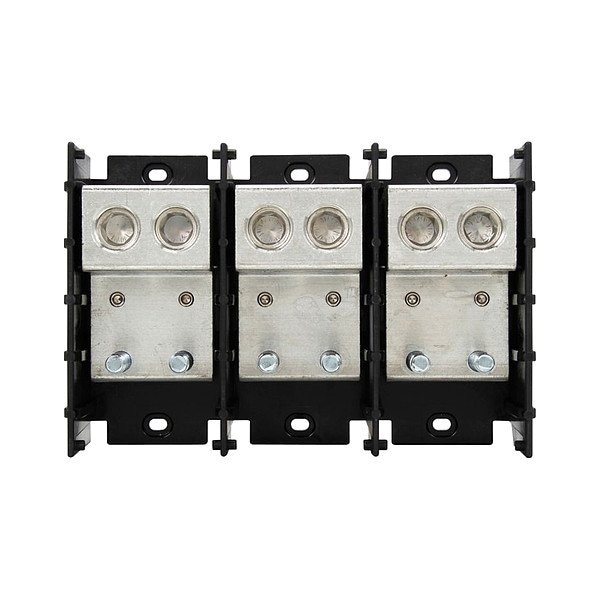

PowerDistributionBlock, 760A, 600V, 3Poles

  • Mfr # 16582-3

  • Zoro # G022604931

product price:  $697.99
/ea
Free Shipping & Returns

Key Features

For Line Copper Wire Size - Maximum
500 kcmil
Overall Depth
6 in
Load Side Connection Type
Stud
Line Side Connection Type
Lug
Number of Poles
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
16582-3
Zoro #
G022604931
UPC #
051712208482
Country of Origin
Mexico

Dimensions

For Line Copper Wire Size - Maximum
500 kcmil
Overall Depth
6 in
Overall Width
3.5 in
For Line Aluminum Wire Size - Minimum
6 AWG
For Line Copper Wire Size - Minimum
6 AWG
Wire Rope Length
9.5 in
For Line Aluminum Wire Size - Maximum
500 kcmil
Load Side Stud Size
3/8-16 x 1 5/8 in

Details

Load Side Connection Type
Stud
Line Side Connection Type
Lug
Number of Poles
3
Power Distribution Block Design
Open
Maximum Current - Aluminum Conductor
760 A
UL 94 Flammability Rating
V-0
Item
Power Distribution Block
Housing Color
Black
For Conductor Material
Aluminum, Copper
Special Features
Higher Temperature Rated Conductors Permitted with Appropriate Derating
Load Connections/Pole
2
Standards
RoHS
Housing Material
Thermoplastic
Maximum Voltage
600 V
Line Connections/Pole
2
Terminal Material
Aluminum
Maximum Current - Copper Conductor
760 A
Series
165
Primary Wire Range
1/0 to 3/0 AWG, 4/0 AWG to 500 MCM, 6 to 1 AWG

Description

TERM. BLOCK ASSY 6PK
