CAD Viewer & Download Files

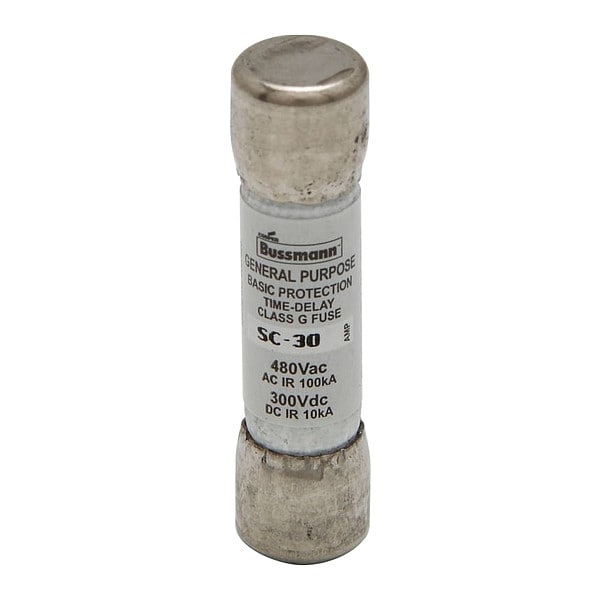

UL Class Fuse, G Class, Time-Delay, 30A, 480V AC, Non-Indicating
Mfr # SC-30
Zoro # G1984281
CAD Available
product price: $13.55
/eaKey Features
CAD Drawing
Class
G
Series
SC
Speed
Time-Delay
AC Voltage Rating
480V AC
DC Voltage Rating
300V DC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
SC-30
Zoro #
G1984281
UPC #
051712250306
Country of Origin
Mexico
Dimensions
Length
1-5/8 in
Diameter
7/16 in
Overall Length
1 5/8 in
Overall Diameter
7/16 in
Description
Fuse, 30 A, 480 V AC, 300 V DC, Class G, SC Series, Non-Indicating, Time-Delay, Body Style Cylindrical, Fits Fuse Block Style Rejection, Interrupt Rating 100kA at 480V AC, 10kA at 300V DC, Fuse Size 1-5/8 in L x 7/16 in dia, Length 1 5/8 in, Diameter 7/16 in, Equivalent Brand and Series Bussmann SC, Littelfuse SLC, Mersen AG, Equivalent Series AG, SC, SLC, Compatible Fuse Block Series BG30, Body Material Melamine, Dual Element, Standards CE, CSA Guide 1422-01, UL 248-5 Guide JDDZ
