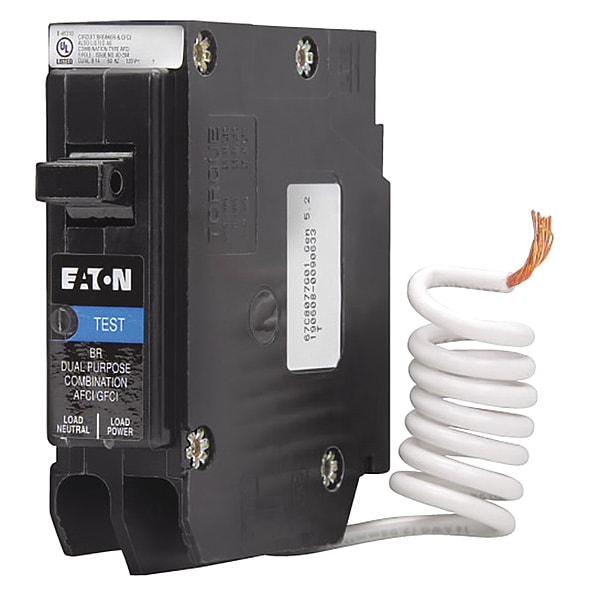

Circuit Breaker, BR Series, 20A, 1 Pole, 120V AC, 10kA
Mfr # BRN120AF
Zoro # G3633039
CAD Available
product price: $83.19
/ea
Free Shipping & Returns
Key Features
CAD Drawing
Series
BR
Number of Poles
1
AC Voltage Rating
120V AC
Circuit Breaker Type
Ground Fault Circuit Interrupter
Phase
1
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
BRN120AF
Zoro #
G3633039
UPC #
786689040895
Country of Origin
Dominican Republic
Dimensions
Width
1 in
Depth
1-1/4 in
Height
1-1/4 in
Max. Wire Size
8 AWG
Min. Wire Size
14 AWG
Length
6 in
Details
Item
Circuit Breaker
Series
BR
Amps
20A
Number of Poles
1
AC Voltage Rating
120V AC
Circuit Breaker Type
Ground Fault Circuit Interrupter
Phase
1
Circuit Breaker Actuator
Toggle
Circuit Breaker Mounting Style
Plug In
Max. AIR Rating
10kA
Terminal Connection
Plug-On
DC Voltage Rating
Not Rated
Interrupt Rating
10 kA
Standards
UL Listed
For Use With
Type BR Loadcenters
Compatible Panelboard/Load Center Series
BR
CAD Available
Yes
Description
Circuit Breaker, Amps 20 A, AC Voltage Rating 120V AC, Circuit Breaker Type Arc Fault Circuit Interrupter, Number of Poles 1, DC Voltage Rating Not Rated, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Plug In, Compatible Panelboard/Load Center Series BR, Phase Single, Series BR, Max. AIR Rating 10kA at 120V AC, For Use With Type BR Loadcenters, Length 6 in, Width 1 in, Depth 1.25 in, Min. Wire Size 14 AWG, Max. Wire Size 8 AWG, Standards UL Listed
