Eaton

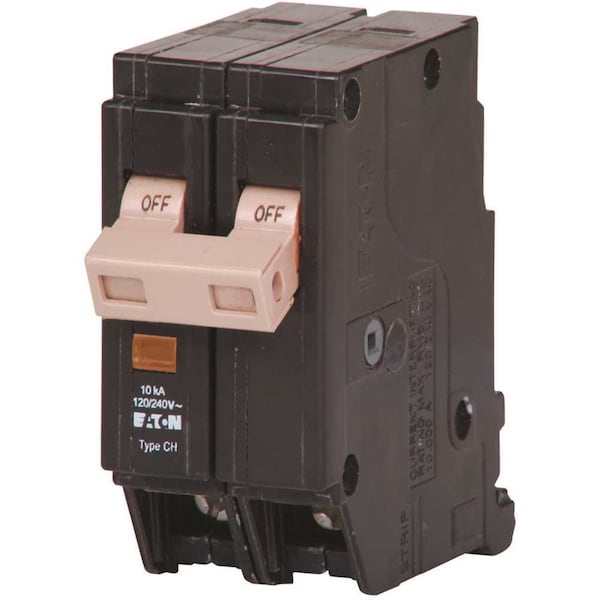

Circuit Breaker, CH Series, 35A, 2 Pole, 120/240V AC, 10kA
Mfr # CHF235
Zoro # G208568156
product price: $71.15
/eaFree Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Series CH
- Amps 35A
- Number of Poles 2
- AC Voltage Rating 120/240V AC
- Circuit Breaker Type Standard
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams Free 30-Day Returns
Return Policy Accepted Payment Options
Product Information
- Brand Eaton
- MFR # CHF235
- Zoro # G208568156
- UPC # 786685532158
- Country of Origin United States
- Category Circuit Breakers
Dimensions
| Width | 0.75 in |
| Depth | 1.5 in |
| Height | 2.6 in |
Details
| Item | Circuit Breaker |
| Series | CH |
| Amps | 35A |
| Number of Poles | 2 |
| AC Voltage Rating | 120/240V AC |
| Circuit Breaker Type | Standard |
| Max. AIR Rating | 10kA |
| Trip Type | Trip Flag |
| DC Voltage Rating | Not Rated |
Description
Eaton has enhanced its premium Type CH residential circuit breakers, making the best even better. In addition to the industry exclusive Trip to OFF and simple 1-Step Reset feature, Eaton has added a trip flag to visibly indicate breaker status. Along with Tri-Drive screws and new markings that highlight ratings and the Eaton brand.
- Primary function of a circuit breaker is to protect the wire from overheating overload and fault currents short circuit
- Amperage rating: 35 Amp
- Double pole breaker
- Flag visually confirms tripped status, making it easy for the homeowner to identify
- For use in type CH load centers only
- Interrupt rating - 10 kAIC
- Voltage rating is 120/240-Volt
- 1 #14-8, 2 #14-10 AWG Cu/Al 60°C or 75°C
- HACR rated
