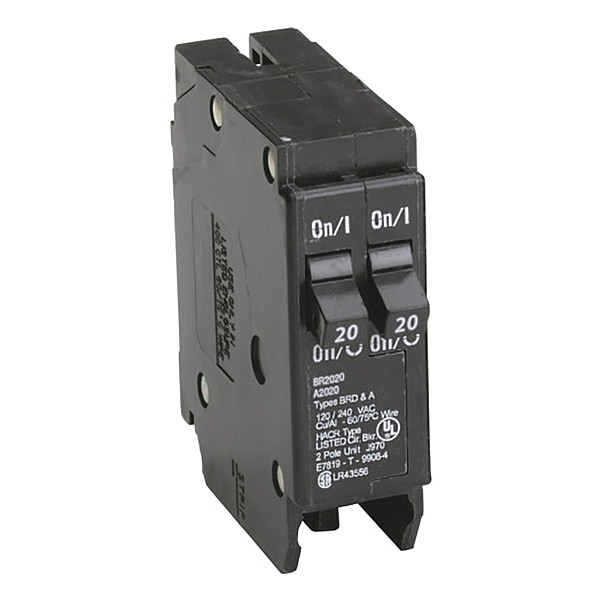

Circuit Breaker, BR Series, 20A, 2 Pole, 120V AC, 10kA
- Mfr # BR2020
- Zoro # G3633626
product price:Â
$
42.29
/ea
Key Features
Series
BR
Number of Poles
2
AC Voltage Rating
120V AC
Circuit Breaker Type
Tandem
Phase
Single
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- BR2020
- Zoro #
- G3633626
- UPC #
- 786676370257
- Country of Origin
- Dominican Republic
- Item
- Circuit Breaker
- Series
- BR
- Amps
- 20A
- Number of Poles
- 2
- AC Voltage Rating
- 120V AC
- Circuit Breaker Type
- Tandem
- Phase
- Single
- Circuit Breaker Actuator
- Toggle
- Circuit Breaker Mounting Style
- Plug In
- Max. AIR Rating
- 10kA
- Trip Type
- Common
- DC Voltage Rating
- Not Rated
- Interrupt Rating
- 10 kA
- For Use With
- Type BR Loadcenters
- Standards
- UL 489, Federal Specifications Classification W-C375
- Compatible Panelboard/Load Center Series
- BR
- Compatibility
- Cutler-Hammer Load Center
- Additional Information
- Type: BR, Amps: 30, Volts AC: 120, 240, Poles: 2, Type: Miniature, Interrupt Rating AC: 10000
- Form Factor
- Plug-in
- Certifications
- UL 489
- Compliances
- Federal Specifications Classification W-C375
- Compatible Product Type
- Type BR Loadcenters
Dimensions
- Frame Size
- BR
- Width
- 1 in
- Depth
- 2.5 in
- Height
- 2-1/2 in
- Max. Wire Size
- 4 AWG
- Min. Wire Size
- 14 AWG
- Wire Size
- #14-4 AWG Cu/Al
- Length
- 1 in
Description
Circuit Breaker, Amps 20 A, AC Voltage Rating 120V AC, Circuit Breaker Type Tandem, Number of Poles 2, DC Voltage Rating Not Rated, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Plug In, Compatible Panelboard/Load Center Series BR, Phase Single, Series BR, Max. AIR Rating 10kA at 120V AC, For Use With Type BR Loadcenters, Length 1 in, Width 1 in, Depth 2.5 in, Min. Wire Size 14 AWG, Max. Wire Size 4 AWG, Standards UL 489, Federal Specifications Classification W-C375
