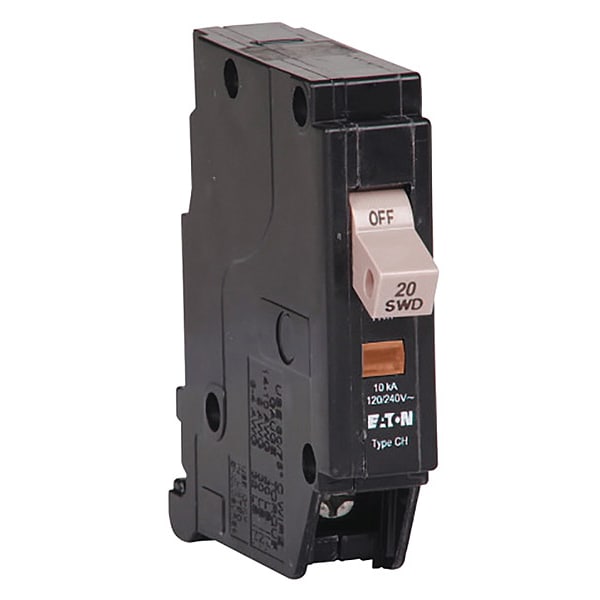

Circuit Breaker, CH Series, 20A, 1 Pole, 120/240V AC, 10kA
Mfr # CHF120
Zoro # G3631611
CAD Available
product price:Â
$
17.59
/ea
Key Features
CAD Drawing
Series
CH
Number of Poles
1
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Standard
Phase
1
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- CHF120
- Zoro #
- G3631611
- UPC #
- 786685361840
- Country of Origin
- Dominican Republic
- CAD Available
- Yes
- Item
- Circuit Breaker
- Series
- CH
- Amps
- 20A
- Number of Poles
- 1
- AC Voltage Rating
- 120/240V AC
- Circuit Breaker Type
- Standard
- Phase
- 1
- Circuit Breaker Actuator
- Toggle
- Circuit Breaker Mounting Style
- Plug In
- Max. AIR Rating
- 10kA
- Trip Type
- Trip Flag
- DC Voltage Rating
- Not Rated
- For Use With
- Type CH Loadcenters
- Interrupt Rating
- 10 kA
- Standards
- UL 489, HACR Rated
- Compatible Panelboard/Load Center Series
- CH
- Form Factor
- Plug-in
- Additional Information
- Type: CH, Amps:20, Volts AC: 120, 240, Poles:1, Type: Miniature, Switch Duty Rated, Interrupt Rating AC: 10000
- Compliances
- HACR Rated
- Certifications
- UL 489
Description
Circuit Breaker, Amps 20 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type Standard, Number of Poles 1, DC Voltage Rating Not Rated, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Plug In, Compatible Panelboard/Load Center Series CH, Phase Single, Series CH, Max. AIR Rating 10kA at 120/240V AC, For Use With Type CH Loadcenters, Length 3 in, Width 0.8 in, Depth 3 in, Min. Wire Size 14 AWG, Max. Wire Size (1) 8 AWG, (2) 10 AWG, Standards UL 489, HACR Rated
