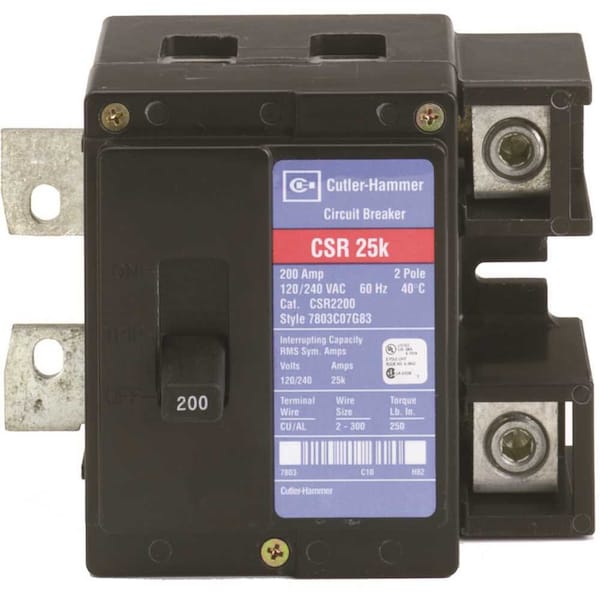

Circuit Breaker, CSR Series, 200A, 2 Pole, 120/240V AC, 25kA (Discontinued)
- Mfr # CSR2200N
- Zoro # G608568121
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
CSR2200N
Zoro #
G608568121
UPC #
782113098463
Country of Origin
United States
Dimensions
Width
4.20 in
Depth
5.30 in
Height
3.52 in
Details
Item
Circuit Breaker
Series
CSR
Amps
200A
Number of Poles
2
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Standard
Max. AIR Rating
25kA
DC Voltage Rating
Not Rated
Description
The Eaton CSR 200 Amp Double-Pole Main Breaker Kit is sized to trip before the total current draw of the panel exceeds the current carrying capacity of the feed from the electric company. This breaker is intended for use as a main breaker in a main breaker or meter breaker load center to deliver electricity to the branch circuit breakers. This unit can also be used as a service disconnect.
- For use as a main breaker in a main breaker or meter breaker load center or as a service disconnect
- Delivers electricity to branch circuit breakers within the load center
- Trips to the center position
- 120/240-Volt
- 25,000 AIC
- Suitable for use with type ECB unit enclosures, such as an Eaton meter breaker load center
- ANSI certified and UL listed
- Breaker is sized to trip before the total current draw of the panel exceeds the current carrying capacity of the feed from the electric company
- Bolt-on installation
- Double pole
- 200 Amp replacement circuit breaker
