  5. Counter, 2Presets, 10-30VDC, 55kHz, 6 Digit

This item is Discontinued.

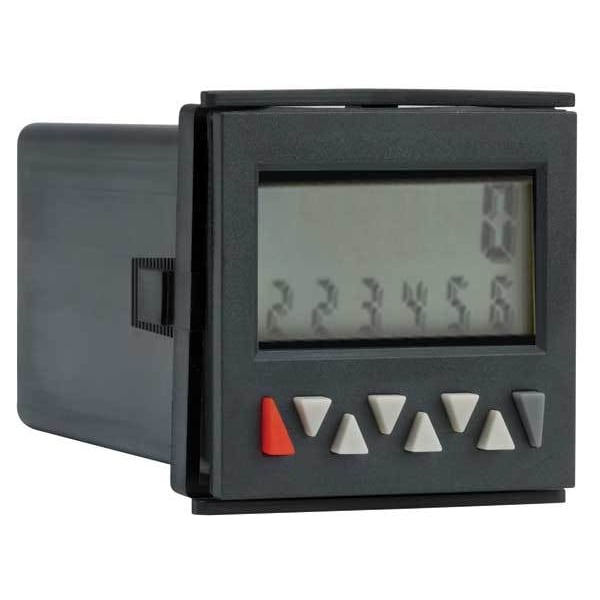

Eaton Counter, 2Presets, 10-30VDC, 55kHz, 6 Digit E5-648-C2422

Counter, 2Presets, 10-30VDC, 55kHz, 6 Digit (Discontinued)

  • Mfr # E5-648-C2422
  • Zoro # G3611991
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
E5-648-C2422
Zoro #
G3611991
UPC #
786685403298
Country of Origin
Germany

Dimensions

Width
1.89 in
Depth
3.58 in
Length
1.89 in
Length (Straight Wireway)
1.89 in
Product Length/Depth
3 in
Product Width
3.5 in
Product Height
3 in
Digit Height - Maximum
0.35 in
Cutout Height
1 4/5 in
Digit Height - Minimum
0.35 in
Cutout DIN Size
1/16
Cutout Width
1 4/5 in

Details

Item
Digital Counter/Timer
Mounting
Panel
Reset Type
Push Button, Remote Signal
Display
2-Preset LCD
Number of Digits
6
Standards
CE, UL
Relay
2
Output Rating
3A @ 110V DC, 3A @ 250V AC
Input Signal
NPN, PNP
Input Voltage
10 to 30V DC
Prescaling Range
0.0001-99.999
Power Rating
8VA
Preset
2
Max. Counts per Second
55,000
Min. On/Off Pulse
10ms
Scaler
Yes
Fits Panel Cut Out
48 x 48mm
Special Features
Programmable As Preset Counter, Batch Counter Or Totalizer. Preset Counters Function As Timer Or Tachomter/Ratemeter. Direct Input Of Presets Via Front Keys Or Teach-In Inputs. Relay Outputs.
Counts
2
Series
E5
Product Type
Totalizer
Voltage rating
10-30 Vdc
Compliances
CE Marked
Certifications
UL Recognized
Type
Totalizer
Product Name
Eaton count control totalizer
Mounting Style
Panel
Counter Display Type
LCD
Input Voltage - Maximum
30 V DC
Input Voltage - Minimum
10 V DC
Display Features
High Contrast
Background Color
Gray
Counts per Second - Maximum
55,000
Output Type
Relay
Features
(2) Preset Count Control
Display Span - Maximum
99,999.9
Digit Color
Black

Description

Counter,1/16 DIN, 2 Presets, 2 Outputs,Number of Digits 6,2 Line Backlit LCD Display,2 Counts,Counts per Second 55kHZ,Input Signal PNP/NPN,Input Voltage 10-30 VDC,Output Rating 250VAC/110VDC,Switch Output Rating 3A AC/ 3A DC,Panel Mounting,Length 1.89 In.,Depth 3.58 In.,Width 1.89 In.,Relay 2,E5 Series,Yes Scaler,2 Preset,Min. On/Off Pulse 10ms,Power Rating 8VA,Prescaling Range 0-0001-99.999,Front / Rear Reset Type
