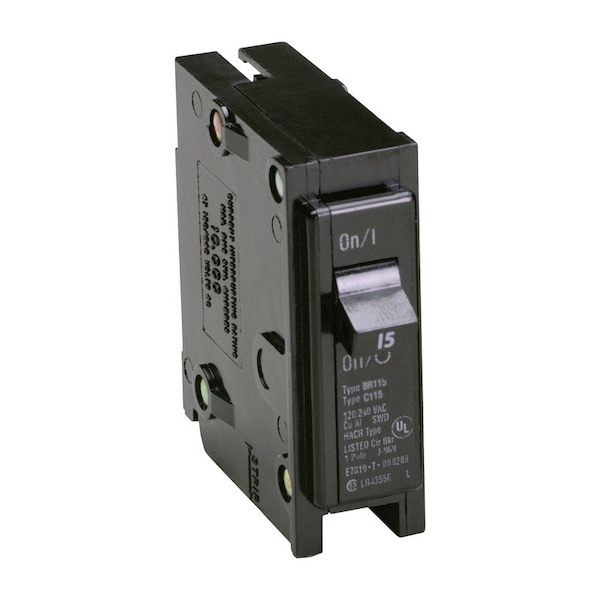

Circuit Breaker, BR Series, 15A, 1 Pole, 120/240V AC, 10kA
Mfr # BR115
Zoro # G8656710
CAD Available
product price:
$
13.05
/ea
Key Features
CAD Drawing
Series
BR
Amps
15 A
Number of Poles
1
AC Voltage Rating
120/240V AC
Circuit Breaker Mounting Style
Plug In
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- BR115
- Zoro #
- G8656710
- UPC #
- 786676362054
- Country of Origin
- Dominican Republic
Dimensions
- Frame Size
- BR
- Width
- 1 in
- Depth
- 3 in
- Height
- 3 in
- Min. Wire Size
- 14 AWG (Cu/Al)
- Max. Wire Size
- 4 AWG (Cu/Al)
- Wire Size
- #14-4 AWG Cu/Al
Details
- CAD Available
- Yes
- Item
- Circuit Breaker
- Series
- BR
- Amps
- 15 A
- Number of Poles
- 1
- AC Voltage Rating
- 120/240V AC
- Circuit Breaker Mounting Style
- Plug In
- Max. AIR Rating
- 10kA
- Trip Type
- Thermal Magnetic
- DC Voltage Rating
- Not Rated
- Interrupt Rating
- 10 kA
- For Use With
- Type BR Loadcenters
- Compliances
- Federal Specifications Classification W-C375
- Certifications
- UL 489
Description
The Eaton Cutler Hammer 15 amp 1 inch. Single Pole Type BR Replacement Circuit Breaker is designed to protect house wires from overheating or causing a short circuit. Single pole breaker applications include use lighting fixtures. The UL listed breaker is compatible with Westinghouse, challenger and Bryant load centers and has a maximum load of 240 volt.
- • Single Pole
- • Heating and AC Rated (HACR)
- • Visual Trip Position
- • Switching Duty Rated
- • 1" Format
- •
