Shop EATON CUTLER-HAMMER

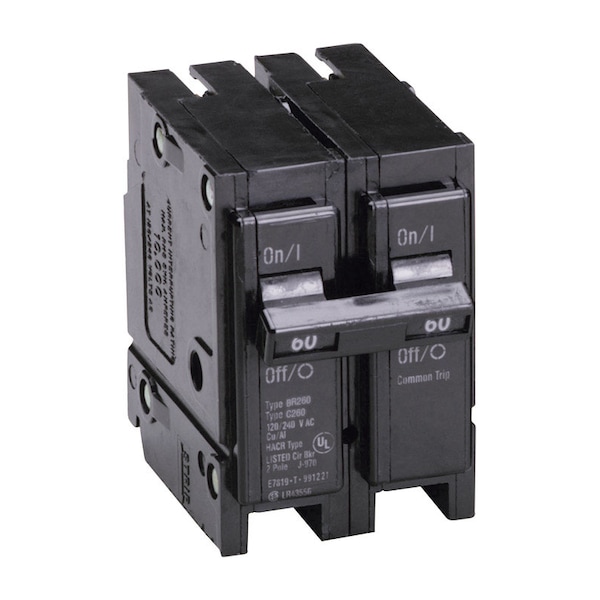

Circuit Breaker, BR Series, 60A, 2 Pole, 120/240V AC, 10kA

  • Mfr # BR260
  • Zoro # G8663598
CAD Available
product price:
$
22.99
/ea

Key Features

CAD Drawing
Series
BR
Amps
60 A
Number of Poles
2
AC Voltage Rating
120/240V AC
Circuit Breaker Mounting Style
Plug In
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
BR260
Zoro #
G8663598
UPC #
786676363105
Country of Origin
Dominican Republic

Dimensions

Frame Size
BR
Width
2.90 in
Depth
1.90 in
Height
2-1/2 in
Min. Wire Size
8 AWG (Cu/Al)
Max. Wire Size
1/0 AWG (Cu/Al)
Wire Size
#8-1/0 AWG Cu/Al

Details

CAD Available
Yes
Item
Circuit Breaker
Series
BR
Amps
60 A
Number of Poles
2
AC Voltage Rating
120/240V AC
Circuit Breaker Mounting Style
Plug In
Max. AIR Rating
10kA
Trip Type
Common
DC Voltage Rating
Not Rated
Standards
UL 489
Interrupt Rating
10 kA
For Use With
Type BR Loadcenters
Compliances
Federal Specifications Classification W-C375

Description

Eaton provides product and service solutions for new residential construction for single-family and multi-family homes, as well as upgrades and replacements for existing homes. The Eaton Cutler-Hammer 60 ampere Double-Pole Type BR Replacement Circuit Breaker is designed to protect house wires from overheating or causing a short-circuit. Double pole breaker applications include use with spas and hot tubs. The UL-listed breaker is compatible with Westinghouse, challenger and Bryant load centers and has a maximum load of 240-volt.


  • • Double Pole
  • • Heating and AC Rated (HACR)
  • • Visual Trip Position
  • • 1" Format
  • •
