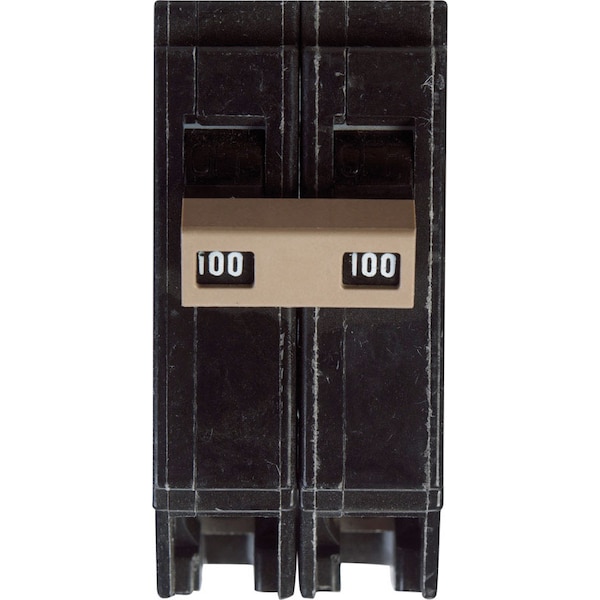

Circuit Breaker, CH Series, 100A, 2 Pole, 120/240V AC, 10kA
Mfr # CH2100
Zoro # G3209426
CAD Available
product price: $99.69
/ea
Free Shipping & Returns
Key Features
CAD Drawing
Series
CH
Amps
100A
Number of Poles
2
AC Voltage Rating
120/240V AC
Max. AIR Rating
10kA
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
CH2100
Zoro #
G3209426
UPC #
782113102375
Country of Origin
United States
Dimensions
Width
8 in
Depth
18-1/2 in
Height
4 in
Min. Wire Size
10 AWG Cu/Al
Max. Wire Size
1/0 AWG (Cu/Al)
Frame Size
CH
Details
Item
Circuit Breaker
Series
CH
Amps
100A
Number of Poles
2
AC Voltage Rating
120/240V AC
Max. AIR Rating
10kA
Trip Type
Common
DC Voltage Rating
Not Rated
For Use With
Type CH Loadcenters
Interrupt Rating
10 kA
CAD Available
Yes
Circuit Breaker Actuator
Trip Free Handle
Circuit Breaker Type
Standard
Description
Circuit breaker CH 2P dual 2/100 amp quick make, quick break switch, inverse time element tripping operation and trip free handle. Thermal-magnetic trip curve.
- • 100 amp 2 pole CH style
- • Heating and AC Rated (HACR)
- • Trip to off feature
- • 3/4" Format
- •
