Shop EATON CUTLER-HAMMER

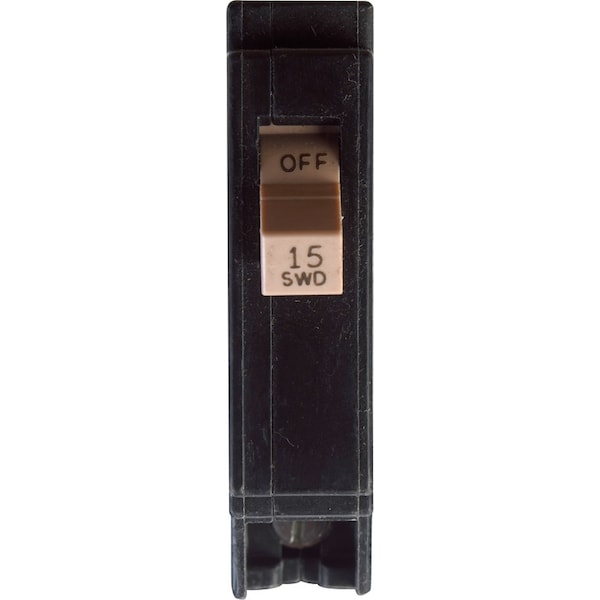

Circuit Breaker, CHF Series, 15A, 1 Pole, 120/240V AC, 10kA

  • Mfr # CHF115

  • Zoro # G3211176

product price:  $18.19
/ea

Key Features

Series
CHF
Amps
15 A
Number of Poles
1
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Standard
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CHF115
Zoro #
G3211176
UPC #
786685361833
Country of Origin
United States

Dimensions

Frame Size
CHF
Width
3.20 in
Depth
0.70 in
Height
2.60 in
Max. Wire Size
(1) 8 AWG, (2) 10 AWG (Cu/Al)
Min. Wire Size
(1) or (2) 14 AWG
Wire Size
(2) #14-10 AWG Cu/Al;(1) #14-8 AWG

Details

Item
Circuit Breaker
Series
CHF
Amps
15 A
Number of Poles
1
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Standard
Max. AIR Rating
10kA
Trip Type
Trip Flag
DC Voltage Rating
Not Rated
For Use With
Type CH Loadcenters
Interrupt Rating
10 kA
Standards
UL 489, HACR Rated
Compliances
HACR Rated
Certifications
UL 489

Description

The primary function of a circuit breaker is to protect the wire from overheating referred to as an overload and fault currents referred to as short circuits. Circuit breakers replaced fuses because they can be reset. The CHF is a new and improved version of Eaton’s premium family of type CH breakers. The CHF series of breakers will have a Flag that visually confirms Tripped status and exclusive Trip to Off 1-Step Reset, which further establishes the CH series of products as best in class.


  • • Single Pole
  • • Heating and AC Rated (HACR)
  • • Trip flag indicator
  • • Switching Duty Rated
  • • 3/4" Format
  • •
