  9. Circuit Breaker, CHF Series, 20A, 2 Pole, 120/240V AC, 10kA

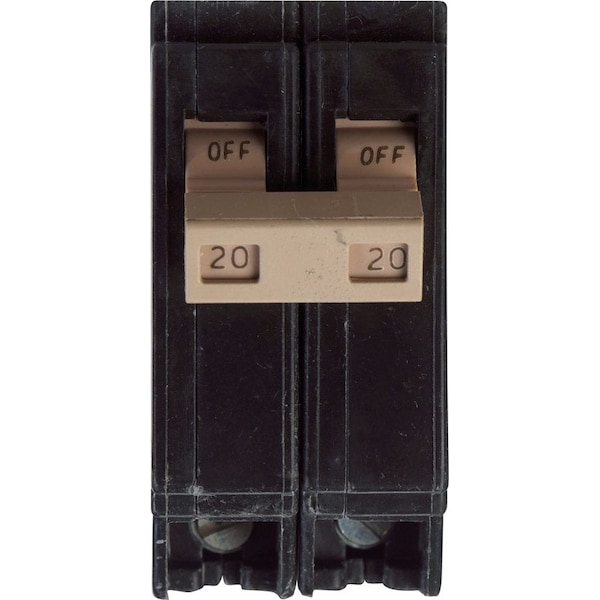

Eaton Cutler-Hammer Circuit Breaker, CHF Series, 20A, 2 Pole, 120/240V AC, 10kA CHF220 - main

Circuit Breaker, CHF Series, 20A, 2 Pole, 120/240V AC, 10kA

  • Mfr # CHF220

  • Zoro # G3209511

product price: $34.89
/ea

Key Features

Series
CHF
Amps
20A
Number of Poles
2
AC Voltage Rating
120/240V AC
Max. AIR Rating
10kA
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CHF220
Zoro #
G3209511
UPC #
786685361888
Country of Origin
United States

Dimensions

Width
3/4 in
Depth
1-1/2 in
Height
2.60 in
Min. Wire Size
(2) 14 AWG (Cu/Al)
Max. Wire Size
(2) 10 AWG (Cu/Al)
Wire Size
(2) #14-10 AWG Cu/Al;(1) #14-8 AWG
Frame Size
CHF

Details

Item
Circuit Breaker
Series
CHF
Amps
20A
Number of Poles
2
AC Voltage Rating
120/240V AC
Max. AIR Rating
10kA
Trip Type
Trip Flag
DC Voltage Rating
Not Rated
For Use With
Type CH Loadcenters
Interrupt Rating
10 kA
Standards
UL 489, HACR Rated
Certifications
UL 489
Compliances
HACR Rated
Circuit Breaker Type
Standard

Description

The primary function of a circuit breaker is to protect the wire from overheating referred to as an overload and fault currents referred to as short circuits. Circuit breakers replaced fuses because they can be reset. The CHF is a new and improved version of Eaton’s premium family of type CH breakers. The CHF series of breakers will have a flag that visually confirms tripped status and exclusive trip to Off/1-step reset, which further establishes the CH series of products as best in class.


  • • For use in Eaton Type CH load centers, spa, pool and meter breaker panels
  • • Heating and AC Rated (HACR)
  • • Trip flag indicator
  • • Requires (2) 3/4-in spaces
  • • Fits Cutler-Hammer CH classic panels only
  • •
