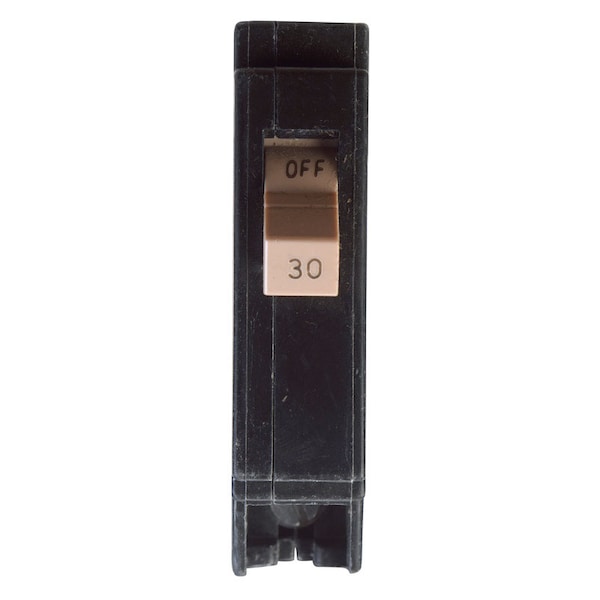

Circuit Breaker, CHF Series, 30A, 1 Pole, 120/240V AC, 10kA
Mfr # CHF130
Zoro # G3209286
product price: $17.95
/eaKey Features
Series
CHF
Amps
30A
Number of Poles
1
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Standard
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
CHF130
Zoro #
G3209286
UPC #
786685361864
Country of Origin
United States
Dimensions
Frame Size
CHF
Width
0.70 in
Depth
3.20 in
Height
2.60 in
Min. Wire Size
(2) 14 AWG (Cu/Al)
Max. Wire Size
(2) 10 AWG (Cu/Al)
Details
Item
Circuit Breaker
Series
CHF
Amps
30A
Number of Poles
1
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Standard
Max. AIR Rating
10kA
Trip Type
Trip Flag
DC Voltage Rating
Not Rated
Standards
UL 489, HACR Rated
Interrupt Rating
10 kA
For Use With
Type CH Loadcenters
Description
The primary function of a circuit breaker is to protect the wire from overheating (referred to as an overload) and fault currents (referred to as short circuits). Circuit breakers replaced fuses because they can be reset. The CHF is a new and improved version of Eaton’s premium family of type CH breakers. The CHF series of breakers will have a flag that visually confirms tripped status and exclusive trip to off/1-step reset, which further establishes the CH series of products as best in class.
- • 1 Pole 30 amp CH style
- • For Use In Cutler-Hammer Panels Only
- • Trip flag indicator
- • Switching Duty Rated
- •
