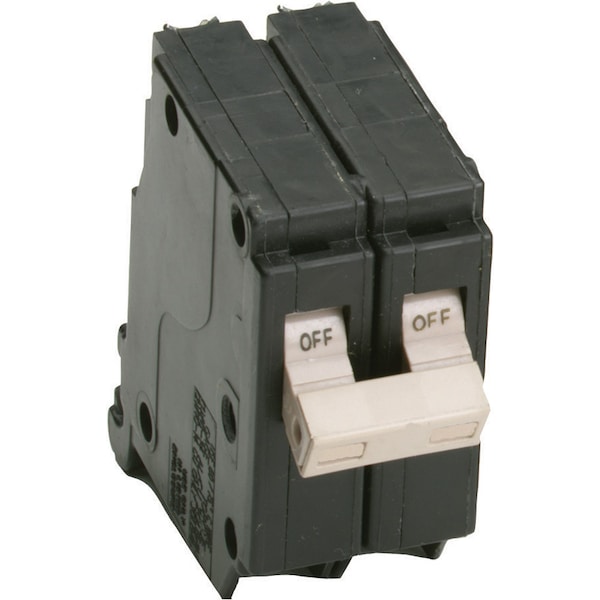

Circuit Breaker, CHF Series, 30A, 2 Pole, 120/240V AC, 10kA
Mfr # CHF230
Zoro # G3208610
CAD Available
product price: $33.35
/eaKey Features
CAD Drawing
Series
CHF
Amps
30A
Number of Poles
2
AC Voltage Rating
120/240V AC
Max. AIR Rating
10kA
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
CHF230
Zoro #
G3208610
UPC #
786685361901
Country of Origin
United States
Dimensions
Width
3/4 in
Depth
1-1/2 in
Height
2.60 in
Max. Wire Size
8 AWG
Min. Wire Size
14 AWG
Wire Size
(1) #14-8 AWG;(2) #14-10 AWG Cu/Al
Frame Size
CHF
Details
Item
Circuit Breaker
Series
CHF
Amps
30A
Number of Poles
2
AC Voltage Rating
120/240V AC
Max. AIR Rating
10kA
Trip Type
Trip Flag
DC Voltage Rating
Not Rated
For Use With
Type CH Loadcenters
Standards
UL 489, HACR Rated
Interrupt Rating
10 kA
Certifications
UL 489
Compliances
HACR Rated
CAD Available
Yes
Circuit Breaker Type
Standard
Description
The primary function of a circuit breaker is to protect the wire from overheating (referred to as an overload) and fault currents (referred to as short circuits). Circuit breakers replaced fuses because they can be reset. The CHF is a new and improved version of Eaton’s premium family of type CH breakers. The CHF series of breakers will have a flag that visually confirms “tripped” status and exclusive “trip to Off”/1-step reset, which further establishes the CH series of products as best in class.
- • 2 Pole 30 amp CH style
- • Heating and AC Rated (HACR)
- • Trip Flag Indicator
- • 3/4" Format
- •
