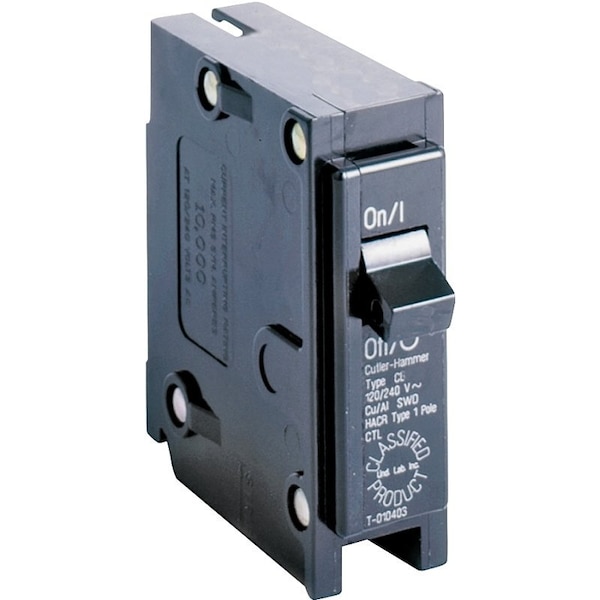

Circuit Breaker, CL Series, 20A, 1 Pole, 120/240V AC, 10kA
Mfr # CL120
Zoro # G107449983
product price:Â $14.99
/eaKey Features
Series
CL
Amps
20A
Number of Poles
1
AC Voltage Rating
120/240V AC
Circuit Breaker Mounting Style
Plug
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
CL120
Zoro #
G107449983
UPC #
786676011556
Country of Origin
Dominican Republic
Dimensions
Frame Size
CH
Width
1 in
Depth
3 in
Height
3 in
Max. Wire Size
4 AWG (Cu/Al)
Min. Wire Size
14 AWG (Cu/Al)
Details
Item
Circuit Breaker
Series
CL
Amps
20A
Number of Poles
1
AC Voltage Rating
120/240V AC
Circuit Breaker Mounting Style
Plug
Max. AIR Rating
10kA
Trip Type
Thermal Magnetic
DC Voltage Rating
Not Rated
Interrupt Rating
10 kA
For Use With
Type CH Loadcenters
Standards
UL 489
Description
Wire size range 14 to 4 Type CL replacement breakers, classified as direct replacements by Underwriters Laboratories for Square D Homeline, General Electric, CrouseHinds, Thomas Betts, Murray and ITESiemens load centers 120240 VAC, 10,000 AIC Requires one 1 in 254 mm space
