Eaton Cutler-Hammer

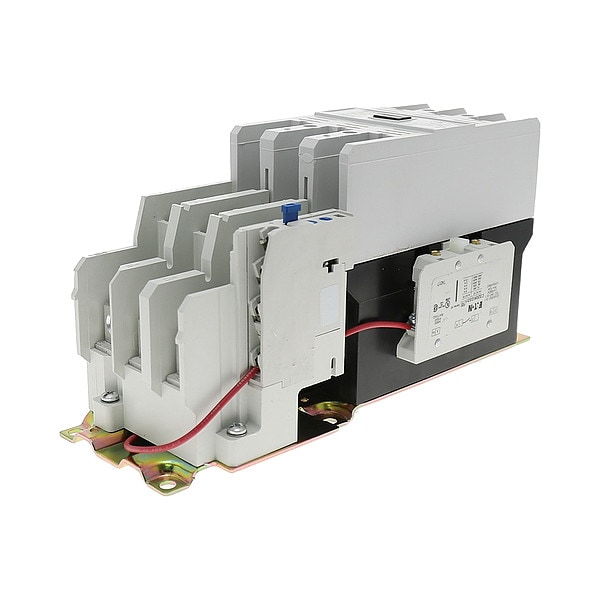

Contactor, 120V Motor Starter

product price: $1,920.25
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Phase Three
  • Standards CSA Certified, UL Listed
  • Overall Height 11.35 in
  • Overall Width 4.08 in
  • Operator None
See all product information

Product Information

Dimensions

Overall Height 11.35 in
Overall Width 4.08 in
Overall Depth 5.94 in
Frame Size S3
Mounting Hole Diameter 0.25 in
NEMA Size 3
Mounting Hole Distance - Width 3 in
Mounting Hole Distance - Height 10.81 in

Details

Item IEC Magnetic Motor Starter
Phase Three
Standards CSA Certified, UL Listed
Operator None
Mounting Style Bracket
Frequency 50/60 Hz
Horsepower @ Three Phase - 240V AC 30 hp
Reversing Capability Non-Reversing
NEMA Enclosure Rating No Enclosure
Horsepower @ Three Phase - 480V AC 50 hp
Includes Auxiliary Contacts Yes
Maximum Voltage Rating 600V AC
Number of Poles 3
Auxiliary Contact Module Capacity 1
Horsepower @ Three Phase - 600V AC 50 hp
Mechanical Operating Durability 3,000,000
Mounting Postion Horizontal
Overload Protection Type Thermal
Horsepower @ Three Phase - 208V AC 25 hp
Coil Voltage 110/120V AC
Auxiliary Contact Form 1NO
Series Freedom
Number of Auxillary Contacts 1
Trip Class 10/20
Starter Style NEMA
Current AC 90 A

Description

IEC Magnetic Motor Starter, Includes Auxiliary Contacts Yes, Maximum Overload Relay Current Setting Not Applicable, Overload Protection Type Thermal, Minimum Overload Relay Current Setting Not Applicable, Trip Class 10/20, Series Freedom, Number of Poles 3, Number of Auxillary Contacts 1, Phase Three, Operator None, Operator Function Not Applicable, Mounting Style Bracket, Auxiliary Contact Form 1NO, Starter Style NEMA, Reversing Capability Non-Reversing, Maximum Voltage Rating 600V AC
