  15. Cutler-Hammer Limit Switch Head, Push Button Plungr, Top

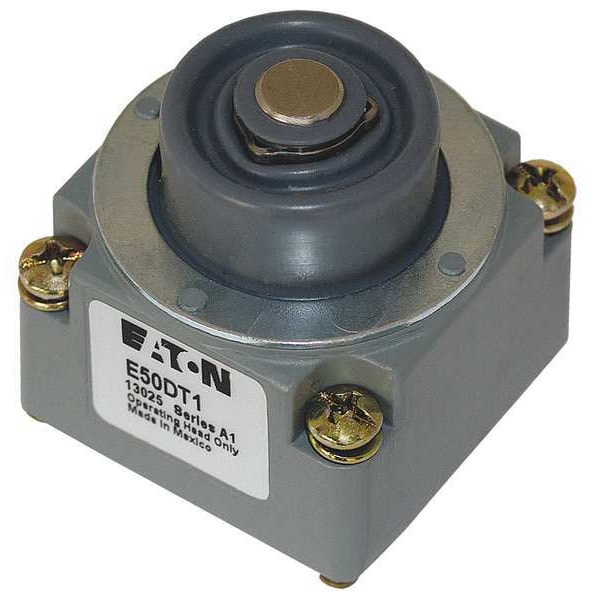

Eaton Cutler-Hammer Limit Switch Head, Push Button Plungr, Top E50DT1 - main

Cutler-Hammer Limit Switch Head, Push Button Plungr, Top

  • Mfr # E50DT1

  • Zoro # G5231992

product price: $175.99
/ea
Free Shipping & Returns

Key Features

Actuator Style
Plunger
Actuator Location
Top
Actuator Length
0.06 in
For Use With
Mfr. No. E50SA
NEMA Rating
1, 12, 13, 2, 4, 4X, 6P
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
E50DT1
Zoro #
G5231992
UPC #
782113290591
Country of Origin
Mexico

Dimensions

Actuator Length
0.06 in
Product Width
1.54 in
Product Height
1.78 in
Product Length/Depth
1.48 in
Manufacturer Warranty Length
1 yr
Overall Width
1.54 in
Arm Length - Maximum
0.06 in
Overall Depth
1.48 in
Overall Height
1.78 in

Details

Item
Limit Switch Head
Actuator Style
Plunger
Actuator Location
Top
For Use With
Mfr. No. E50SA
NEMA Rating
1, 12, 13, 2, 4, 4X, 6P
Movement
Top
Operating Temp.
14 Degrees to 221 Degrees F
Description/Special Features
Momentary
Voltage Rating
600V AC
Amps
10
Operating Force
2.2 N
IP Rating
IP67
Standards
CSA, RoHS, UL Listed
Travel
Operating Travel 0.04 in, Reset Travel 0.02 in, Total Travel 0.28 in
Actuator
Top pushbutton
Enclosure material
Die cast zinc
Environmental rating
NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
Certifications
CSA Certified
Operating temperature - min
14°F
Operating temperature - max
201°F
Series
E50
Product Name
Eaton E50 NEMA heavy duty plug-in limit switch
Compatible with Brand
Eaton
Operating Temperature - Minimum
14 Degrees F
Plunger Adjustability
Fixed
Compatible with Manufacturer Model Number
E50SA
NEMA Enclosure Rating
1, 13, 3, 3S, 4, 4X, 6, 6P
Differential Travel
0.28 in
Pretravel
0.02 in
Reset Travel
0.02 in
Operating Temperature - Maximum
201 Degrees F
Includes Actuator
Actuator Included
Directional Movement
Linear
Compatible with Series
E50
Overtravel
0.04 in
Total Travel
0.28 in
Operating Torque
4 in-lb
Action
Momentary
Compatible Manufacturer Part Number
E50SA
Compatible Manufacturer Model Number
E50SA
Compatible with Manufacturer Model No.
E50SA
Compatible with Mfr. Model No.
E50SA
For Use with Mfr Model Number
E50SA
For Use With Mfr. Model Number
E50SA
Compatible Pump Manufacturer Part Number
E50SA
Compatible Mfr. Model Number
E50SA

Description

Limit Switch Head, Actuator Style Plunger, Actuator Location Top, Actuator Length 0.06 in, Contact Form Not Applicable, Amps 10, Voltage Rating 600V AC, Travel Operating Travel 0.04 in, Reset Travel 0.02 in, Total Travel 0.28 in, Movement Top, Operating Force 2.2 N, Operating Temp. 14 Degrees to 221 Degrees F, NEMA Rating 1, 12, 13, 2, 4, 4X, 6P, IP Rating IP67, Standards CSA, RoHS, UL Listed, For Use With Mfr. No. E50SA
