  15. Cutler-Hammer Lmt Swtch Head, Cat Wskr Head, Top, 1.10 In

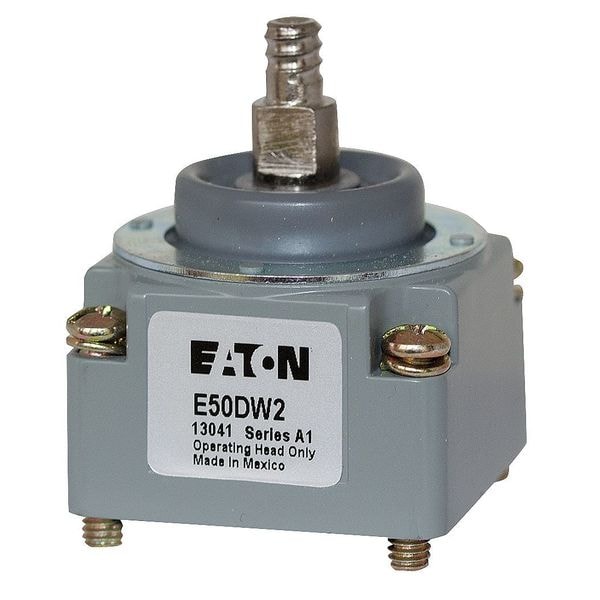

Eaton Cutler-Hammer Lmt Swtch Head, Cat Wskr Head, Top, 1.10 In E50DW2 - main

Cutler-Hammer Lmt Swtch Head, Cat Wskr Head, Top, 1.10 In

  • Mfr # E50DW2

  • Zoro # G5232044

product price: $199.99
/ea
Free Shipping & Returns

Key Features

Actuator Style
Wobble Stick
Actuator Location
Top
Actuator Length
1.1 in
For Use With
Mfr. No. E50SA
NEMA Rating
1, 12, 13, 2, 4, 4X, 6P
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
E50DW2
Zoro #
G5232044
UPC #
782113453866
Country of Origin
Mexico

Dimensions

Actuator Length
1.1 in
Product Length/Depth
1.85 in
Product Height
1.78 in
Product Width
1.54 in
Overall Height
1.78 in
Overall Width
1.54 in
Manufacturer Warranty Length
1 yr
Overall Depth
1.85 in

Details

Item
Limit Switch Head
Actuator Style
Wobble Stick
Actuator Location
Top
For Use With
Mfr. No. E50SA
NEMA Rating
1, 12, 13, 2, 4, 4X, 6P
Movement
CW and CCW
Voltage Rating
600V AC
Operating Temp.
14 Degrees to 221 Degrees F
Operating Force
0.67 N
Travel
Operating Travel 10 Degrees , Reset Travel 6 Degrees , Total Travel 15 Degrees
Amps
10
IP Rating
IP67
Description/Special Features
Momentary
Standards
CSA, RoHS, UL Listed
Material
Heavy duty high strength steel
Series
E50
Actuator
Wobble head, spring return
Operating temperature - min
14°F
Operating temperature - max
201°F
Environmental rating
NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
Enclosure material
Die cast zinc
Certifications
CSA Certified
Product Name
Eaton E50 NEMA heavy duty plug-in limit switch
Operating Temperature - Minimum
14 Degrees F
Action
Momentary
Includes Actuator
No Actuator Included
Differential Travel
15 Degrees
Pretravel
5 Degrees
Overtravel
10 Degrees
Compatible with Brand
Eaton
Operating Temperature - Maximum
201 Degrees F
NEMA Enclosure Rating
1, 13, 3, 3S, 4, 4X, 6, 6P
Operating Torque
2 in-lb
Total Travel
15 Degrees
Compatible with Manufacturer Model Number
E50SA
Reset Travel
6 Degrees
Compatible with Series
E50
Directional Movement
Omnidirectional
Compatible Manufacturer Part Number
E50SA
Compatible Manufacturer Model Number
E50SA
Compatible with Manufacturer Model No.
E50SA
Compatible with Mfr. Model No.
E50SA
For Use with Mfr Model Number
E50SA
For Use With Mfr. Model Number
E50SA
Compatible Pump Manufacturer Part Number
E50SA
Compatible Mfr. Model Number
E50SA

Description

Limit Switch Head, Actuator Style Wobble Stick, Actuator Location Top, Actuator Length 1.1 in, Contact Form Not Applicable, Amps 10, Voltage Rating 600V AC, Travel Operating Travel 10 Degrees , Reset Travel 6 Degrees , Total Travel 15 Degrees , Movement CW and CCW, Operating Force 0.67 N, Operating Temp. 14 Degrees to 221 Degrees F, NEMA Rating 1, 12, 13, 2, 4, 4X, 6P, IP Rating IP67, Standards CSA, RoHS, UL Listed, For Use With Mfr. No. E50SA
