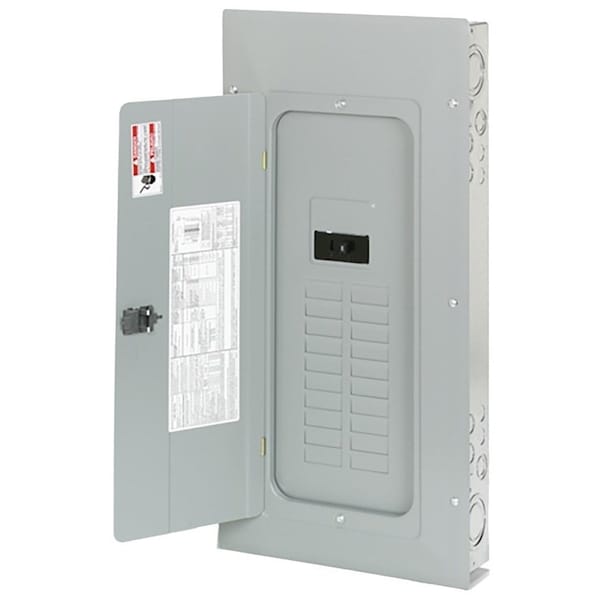

Eaton Cutler-Hammer Load Center, BRP, 20 Spaces, 200A, 120/240V AC, Main Circuit Breaker, 1 Phase BRP20B200 - main

Load Center, BRP, 20 Spaces, 200A, 120/240V AC, Main Circuit Breaker, 1 Phase

  • Mfr # BRP20B200

  • Zoro # G004256561

product price:  $273.99
/ea
Free Shipping & Returns

Key Features

Main Circuit Breaker or Main Lug
Main Circuit Breaker
Number of Spaces
20
Voltage
120/240V AC
Phase
1
Short Circuit Current Rating
22kA
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BRP20B200
Zoro #
G004256561
UPC #
786689054977
Country of Origin
United States

Dimensions

Height
3.88 in
Width
14.31 in
Depth
29.12 in
Min. Wire Size
#6
Max. Wire Size
1/0 AWG Cu/Al

Details

Item
Load Center
Main Circuit Breaker or Main Lug
Main Circuit Breaker
Number of Spaces
20
Amps
200A
Voltage
120/240V AC
Phase
1
Short Circuit Current Rating
22kA
Series
BRP
Included Enclosure Cover
Cover Included
Enclosure Material
Metallic
Enclosure NEMA Rating
NEMA 1
Bus Material
Aluminum
Mounting Style
Combination
Standards
UL 50
Color
Gray
Weight
28.2 lb
Number Of Circuits
40
Special features
Main circuit breaker
Quantity
1
Bus Rating
25 kA
Number Of Poles
Single-pole
Number of wires
Two hots, neutral and ground
Used with
Type BR 1-inch breakers

Description

EATON Indoor Loadcenter, 120/240 VAC, 200 A, 1-Phase, 20-Space, 40-Pole, 40-Circuit, Main Breaker Breaker/Load Center, 25 kA IR, 3-Wire Wiring Configuration, Aluminum Bus Bar, NEMA 1 Enclosure, Bolt-On Mounting
