  13. Cutler-Hammer Non-Illum Selector Swtch, 30mm, 3 Pos, Levr

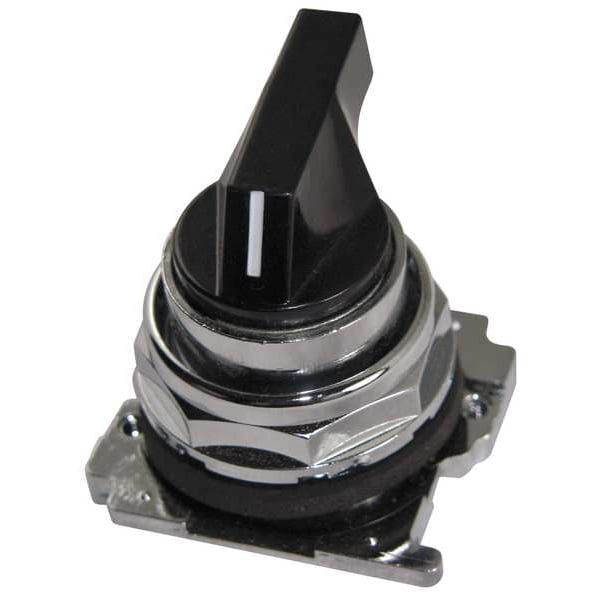

Eaton Cutler-Hammer Non-Illum Selector Swtch, 30mm, 3 Pos, Levr 10250T3023 - main

Cutler-Hammer Non-Illum Selector Swtch, 30mm, 3 Pos, Levr

  • Mfr # 10250T3023

  • Zoro # G5228465

product price: $90.29
/ea
Free Shipping & Returns

Key Features

Size
30 mm
Basic Material
Metal
Type of Operator
Lever
Action
Maintained/Maintained/Maintained
Operator Head Material
Metal
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
10250T3023
Zoro #
G5228465
UPC #
786680122903
Country of Origin
Dominican Republic

Dimensions

Size
30 mm
Product Length/Depth
1.8 in
Product Height
2.2 in
Product Width
1.9 in
Overall Width
1.9 in
Panel Cutout Diameter
30 mm
Manufacturer Warranty Length
1 yr
Overall Height
2.2 in
Overall Depth
1.8 in

Details

Item
Long-Handled Selector Switch
Basic Material
Metal
Type of Operator
Lever
Action
Maintained/Maintained/Maintained
Operator Head Material
Metal
Cam
3
Operator Color
Black
Color
Black
NEMA Rating
12, 13, 3, 3R, 4, 4X
Bezel Material
Anodized Aluminum
Position
3
Bezel Color
Chrome
Key Removal
No Key
Key Number
No Key
Switch Operation @ Position B
O
Switch Operation @ Position C
X
IP Rating
IP65
Switch Operation @ Position A
X
Standards
CSA, UL Listed
Switch Operation @ Position D
No Fourth Position
Series
10250T
Number Of Positions
3
Compliances
CE Marked
Type
30.5 mm, Heavy-Duty
Rating
NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
Certifications
UL Listed
Throw type
60°
Cam code
Cam 3
Actuator
Lever
Actuator color
Black
Illumination
Non-illuminated
Product Name
Eaton 10250T pushbutton
Operator Head Type
Long-Handled Knob
Switch Function @ 1st Position
On
Switch Function @ 3rd Position
On
Number of Positions
3
NEMA Enclosure Rating
12, 13, 3, 3R, 4, 4X
Operator Illumination
Non-Illuminated
Switch Function @ 2nd Position
Off
Switch Function @ 4th Position
No Fourth Position
Hazardous Location Specification
Not Rated
Operator Head Color
Black

Description

Long-Handled Selector Switch, 30 mm, 3 Position, Maintained/Maintained/Maintained Action, Lever Type of Operator, Operator Color Black, Key Removal No Key, Operator Head Material Metal, Bezel Material Anodized Aluminum, Bezel Color Chrome, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP65, Cam 3, Standards CSA, UL Listed, Key Number No Key
