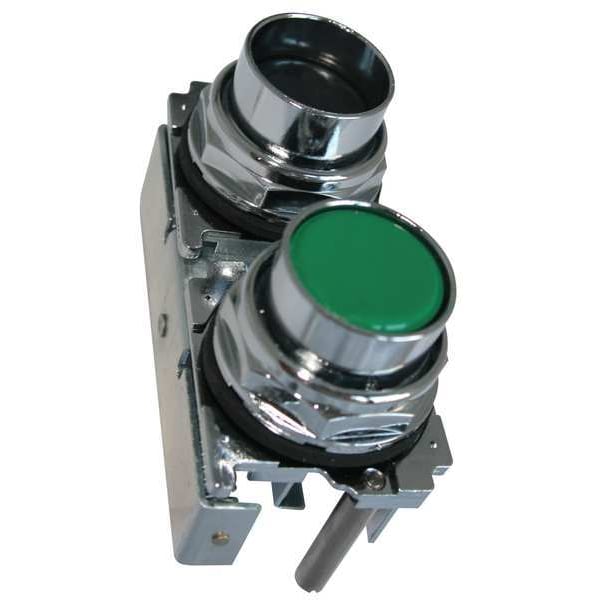

Eaton Cutler-Hammer Pendant Pushbutton, 30mm, Flush/Flush 10250TA66 - main

Cutler-Hammer Pendant Pushbutton, 30mm, Flush/Flush

  • Mfr # 10250TA66

  • Zoro # G5228212

product price: $194.99
/ea
Free Shipping & Returns

Key Features

Color
Black/Green
Action
Maintained/Maintained
Head Material
Metal
NEMA Rating
12, 13, 3, 3R, 4, 4X
Type of Operator
Flush Button/Flush Button
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
10250TA66
Zoro #
G5228212
UPC #
786680124365
Country of Origin
Dominican Republic

Dimensions

Size
30 mm
Product Height
3.2 in
Product Length/Depth
4.4 in
Product Width
3.3 in
Overall Depth
4.4 in
Manufacturer Warranty Length
1 yr
Panel Cutout Diameter
30 mm
Overall Height
3.2 in
Overall Width
3.3 in

Details

Item
Pendant Push Button
Color
Black/Green
Action
Maintained/Maintained
Head Material
Metal
NEMA Rating
12, 13, 3, 3R, 4, 4X
Type of Operator
Flush Button/Flush Button
Contact Rating
10A @ 600V AC/DC
Standards
CE, CSA, UL Listed
Number of Operators
2
For Use With
30.5 mm Heavy-Duty Watertight/Oiltight-10250T
IP Rating
IP65
Mechanical Interlock
Yes
Features
Diaphragm Seals, Drainage Holes, Enclosed Silver Contacts, Grounding Nibs, Reliability Nibs
Type
30.5 mm, Heavy-Duty
Bezel Material
Chrome Plated Zinc Die Cast
Terminal Connection
Screw Clamp
Bezel
Chrome
Actuator color
Black, green
Actuator material
Plastic
Mounting method
Flush
Certifications
UL Listed
Series
10250T
Illumination
Non-illuminated
Operating Mode
Maintained
Compliances
CE Marked
Actuator
Mechanically interlocked
Rating
NEMA 3
Product Name
Eaton 10250T pushbutton operator
Product Type
Push Button Operators
Resistance Properties
Oil and Grease Resistant
Operator Material
Metal
Operating Temperature - Maximum
150 Degrees F
Head Color
Black, Green
Operating Temperature - Minimum
1 Degrees F
NEMA Enclosure Rating
12, 13, 3, 3R, 4, 4X
Maintained Action Release
Push/Push
Operator Illumination
Non-Illuminated
Push Button Style
Flush
Number of Indicator Lights
0

Description

Pendant Push Button, 30 mm, Maintained/Maintained, Type of Operator Flush Button/Flush Button, Head Material Metal, Bezel Material Chrome Plated Zinc Die Cast, Color Black/Green, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP65, Standards CE, CSA, UL Listed, Features Diaphragm Seals, Drainage Holes, Enclosed Silver Contacts, Grounding Nibs, Reliability Nibs
