  11. Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Stainless Steel, 2 m, Bare Wire, 3 Wires, Semi-Shielded

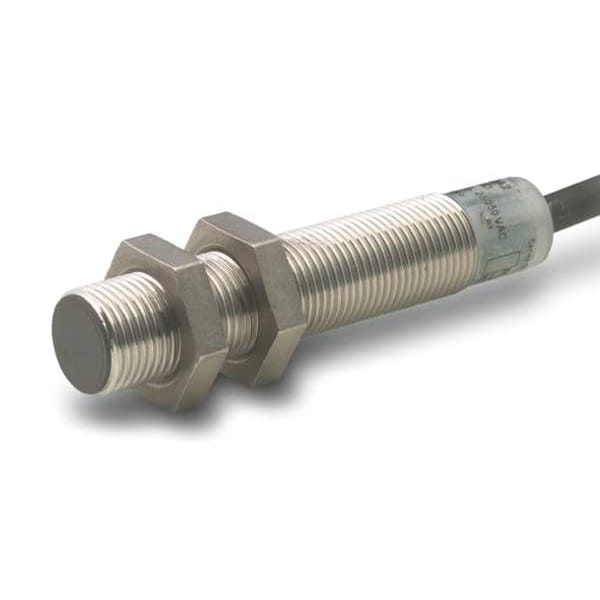

Eaton Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Stainless Steel, 2 m, Bare Wire, 3 Wires, Semi-Shielded E57-12LE06-C - main

Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Stainless Steel, 2 m, Bare Wire, 3 Wires, Semi-Shielded

  • Mfr # E57-12LE06-C

  • Zoro # G1724177

product price: $174.99
/ea
Free Shipping & Returns

Key Features

Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
6 to 48V DC
Length
73 mm
Width
0.47 in
Depth
0.47 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
E57-12LE06-C
Zoro #
G1724177
UPC #
-
Country of Origin
Mexico

Dimensions

Length
73 mm
Width
0.47 in
Depth
0.47 in
Product Height
2.87 in
Cable Length
2 m
Overall Height
73 mm
Overall Diameter
12 mm

Details

Item
Proximity Sensor
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
6 to 48V DC
Proximity Sensor Electrical Connection
2m Cable
Proximity Sensor Operating Frequency
800 Hz
Standards
CE, CSA, UL Listed
Description/Special Features
360 Degrees Viewable LED Output Indication
Operating Temp. Range
-13 Degrees to 158 Degrees F
Max. Current Load
500mA
Electrical Connection
Bare Wire
Series
E57
Sensor Type
Inductive proximity
Environmental Rating
NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67, IP69K
Contact Rating
500 mA at 6-30 Vdc, 300 mA at 32-48 Vdc
Protection
Auto reset short circuit
Cable Type
Polyvinyl Chloride (PVC)
Enclosure Material
End bell: polycarbonate;Tube: stainless steel;Front cap: polyphenylene sulfide
Led Indicator
Green power up turns red when output energized
Accuracy
< 3% of sensing distance
Maximum DC Current
500 mA
Style
Cylindrical, Inductive
Body Material
Stainless Steel
Electrical Installation Type
Prewired Cable
NEMA Enclosure Rating
12, 13, 4, 4X, 6, 6P
Sensing Distance - Maximum
6 mm
Output Circuit Contact Form
NO
AC Voltage Rating
Not Rated
Load Current - Maximum
500 mA
Sensing Face Shielding
Semi-Shielded
Features
Auto Reset Short Circuit
Switching Frequency
800 Hz
Includes Indicator Lights
Indicator Lights Included
DC Voltage Rating
6-48V DC
Operating Temperature - Minimum
-13 Degrees F
Operating Temperature - Maximum
158 Degrees F
Output Circuit Number of Wires
3
Body Stainless Steel Grade
303
Output Circuit Type
NPN

Description

Inductive Cylindrical Proximity Sensor, Inductive, 12 mm, Proximity Sensor Power Requirement 6 to 48V DC, Semi-Shielded, Proximity Sensor Operating Frequency 800 Hz, Proximity Sensor Output Circuit Type 3 Wire NPN, Max. Detecting Distance 6 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, NEMA Rating 12, 13, 4, 4X, 6, 6P, IP Rating IP67, IP69K, Case Material 303 Stainless Steel, Length 73 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 500mA
