Dayton

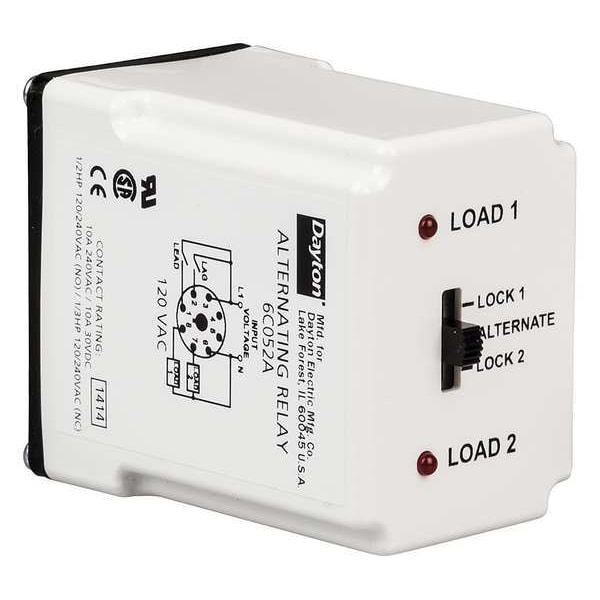

Relay, Alternating

product price: $59.35
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Coil Volts 120V AC
  • AC Contact Rating - Relay 10A @ 240V
  • DC Contact Rating - Relay 10A @ 28V
  • Base Type - Plug In Relay Octal
  • Number of Pins - Relay 8
See all product information

Product Information

Dimensions

Body Height - Relay 2.9 in
Body Depth - Relay 1.7 in
Body Width - Relay 2.4 in
Overall Height - Relay 3.1 in
Overall Depth 3.1 in
Body Depth 2.9 in
Body Height 2.4 in
Body Width 1.7 in

Details

Item - Relay Alternating Relay
Coil Volts 120V AC
AC Contact Rating - Relay 10A @ 240V
DC Contact Rating - Relay 10A @ 28V
Base Type - Plug In Relay Octal
Number of Pins - Relay 8
Mounting - Relay Plug In
Power Consumption - Relay 3.0 VA
Contact Form - Relay DPDT Cross-Wired
Operating Modes - Alternating Relay Alternate, Always Energize Load 1, Always Energize Load 2
Amps 10
Alternating Mode Selection Method Selector Switch
Pins 8
Base Type Octal
Socket 5X852, 1EGP3, 1EGP5
Contact Form DPDT
Max. Input Volts 132VAC
Item Alternating Relay
Number of Contacts 2
Green Environmental Attribute RoHS 2011/65/EU Compliant
Standards CE Certified, UL Listed
Status Indicator LED Indicates First Load to be Energized
Mounting Style Plug-In
Number of Pins 8
Socket Code Configurator Octal / 8
Socket Code A
Contact Rating (AC) 10 A @ 240V
Input Voltage 120V AC
Coil Voltage 120V AC
Contact Rating (DC) 10 A @ 28V
Relay Mounting Style Socket
Base Shape Octal
Operating Modes Alternate, Always Energize Load 1, Always Energize Load 2
Power Consumption 3 VA

Description

Alternating Relay, Base Shape Octal, Coil Voltage 120V AC, Contact Form DPDT, Contact Rating (AC) 10 A @ 240V, Contact Rating (DC) 10 A @ 28V, Flat Pin Width Not Applicable, Number of Pins 8, Operating Modes Alternate, Always Energize Load 1, Always Energize Load 2, Status Indicator LED Indicates First Load to be Energized, Alternating Mode Selection Method Selector Switch, Mounting Style Plug-In, Power Consumption 3 VA, Body Depth 2.9 in, Body Height 2.4 in, Body Width 1.7 in
