Shop EATON

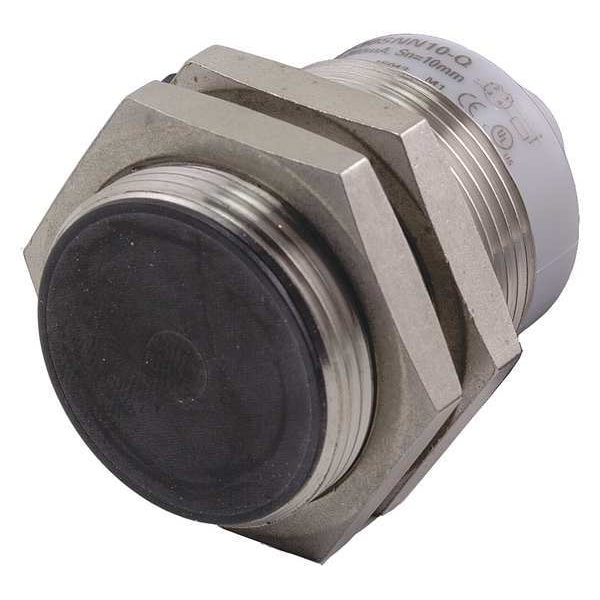

Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Stainless Steel, Micro, 3 Wires, Shielded

  • Mfr # E57PS-30SPC10-Q

  • Zoro # G0121515

product price:
$
141.99
/ea
Free Shipping & Returns

Key Features

Style
Inductive, Cylindrical
Overall Diameter
30 mm
Proximity Sensing Method
Inductive
Body Material
Stainless Steel
Proximity Sensor Power Requirement
10 to 48V DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
E57PS-30SPC10-Q
Zoro #
G0121515
UPC #
786685906973
Country of Origin
Mexico

Dimensions

Overall Diameter
30 mm
Length
45 mm
Width
2 in
Depth
5 in
Product Length/Depth
5.2 in
Overall Height
45 mm

Details

Item
Proximity Sensor
Style
Inductive, Cylindrical
Proximity Sensing Method
Inductive
Body Material
Stainless Steel
Proximity Sensor Power Requirement
10 to 48V DC
Electrical Connection
Micro
Output Circuit Type
PNP
Output Circuit Number of Wires
3
Sensing Face Shielding
Shielded
Sensing Distance - Maximum
10 mm
AC Voltage Rating
Not Rated
DC Voltage Rating
10-48V DC
Output Circuit Contact Form
NC
Standards
UL Listed
Proximity Sensor Electrical Connection
4 Pin Micro Connector
Proximity Sensor Operating Frequency
600 Hz
IP Rating
IP69K
Max. Current Load
300mA
Description/Special Features
Proximity Switch-Short Body
Operating Temp. Range
-13 Degrees to 158 Degrees F
Number of Pins
4
Operating Temperature - Maximum
158 Degrees F
Load Current - Maximum
300 mA
Includes Indicator Lights
Indicator Lights Included
Features
360 Degree LED Indicator, Laser-Engraved Label, Short Circuit Protection
Series
E57
Operating Temperature - Minimum
-40 Degrees F
NEMA Enclosure Rating
4, 4X, 6, 6P
Electrical Installation Type
Direct Connector
Sensing Method
Inductive
Switching Frequency
600 Hz

Description

Inductive Cylindrical Proximity Sensor, Inductive, 30 mm, Proximity Sensor Power Requirement 10 to 48V DC, Shielded, Proximity Sensor Operating Frequency 600 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 10 mm, Proximity Sensor Electrical Connection 4 Pin Micro Connector, Output Mode NC, NEMA Rating 4X, IP Rating IP69K, Case Material Stainless Steel, Length 45 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 300mA
