  15. Limit Switch Head, Wbbl Stick, Top, 3.95 In

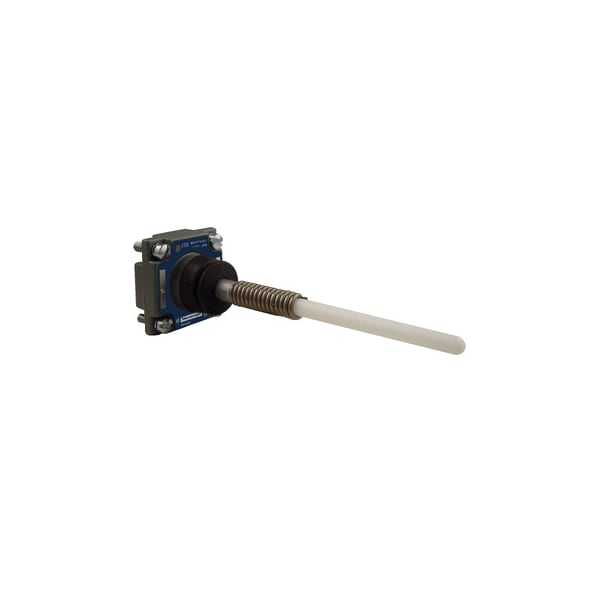

Telemecanique Sensors Limit Switch Head, Wbbl Stick, Top, 3.95 In 9007J - main

Limit Switch Head, Wbbl Stick, Top, 3.95 In

  • Mfr # 9007J

  • Zoro # G3432974

product price: $80.45
/ea
Free Shipping & Returns

Key Features

Actuator Style
Rod
Actuator Location
Top
Actuator Length
3.95 in
For Use With
9007 Type C
NEMA Rating
13, 4, 6P
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9007J
Zoro #
G3432974
UPC #
785901543527
Country of Origin
Mexico

Dimensions

Actuator Length
3.95 in
Manufacturer Warranty Length
18 mo

Details

Item
Limit Switch Head
Actuator Style
Rod
Actuator Location
Top
For Use With
9007 Type C
NEMA Rating
13, 4, 6P
Movement
Omnidirectional
Standards
REACH
Operating Temp.
0 Degrees to 185 Degrees F
Amps
10
Operating Force
3.0 in-lb
IP Rating
Not Rated
Description/Special Features
Momentary
Travel
90 Degrees
Operating Torque
3 in-lb
Compatible with Series
9007C
Operating Temperature - Maximum
185 Degrees F
Directional Movement
Omnidirectional
NEMA Enclosure Rating
13, 4, 6P
Total Travel
90 Degrees
Includes Actuator
Actuator Included
Action
Momentary
Operating Temperature - Minimum
0 Degrees F
Associated Lever
9007C
Ambient Air Temperature For Storage
0-185°F
Type Of Approach
multi-directional approach, multi-directional approach
Series Name
heavy duty
Head Type
multi-directional head
Positive Opening
without
Type Of Operator
spring return wobble stick acetal resin -
Product Compatibility
9007C
Switch Actuation
any direction
Environmental Characteristic
standard environment
Movement Of Operating Head
multi-directional
Ambient Air Temperature For Operation
0-185°F
Device Short Name
9007C
Associated Body
9007C
Product Or Component Type
limit switch head

Description

Limit Switch Head, Actuator Style Rod, Actuator Location Top, Actuator Length 3.95 in, Contact Form Not Applicable, Amps 10, Voltage Rating Not Applicable, Travel 90 Degrees , Movement Omnidirectional, Operating Force 3.0 in-lb, Operating Temp. 0 Degrees to 185 Degrees F, NEMA Rating 13, 4, 6P, IP Rating Not Rated, Standards REACH, For Use With 9007 Type C
