  11. Cylindrical, Inductive Proximity Sensor, 8 mm Dia., Brass, 2 m, Bare Wire, 3 Wires, Shielded

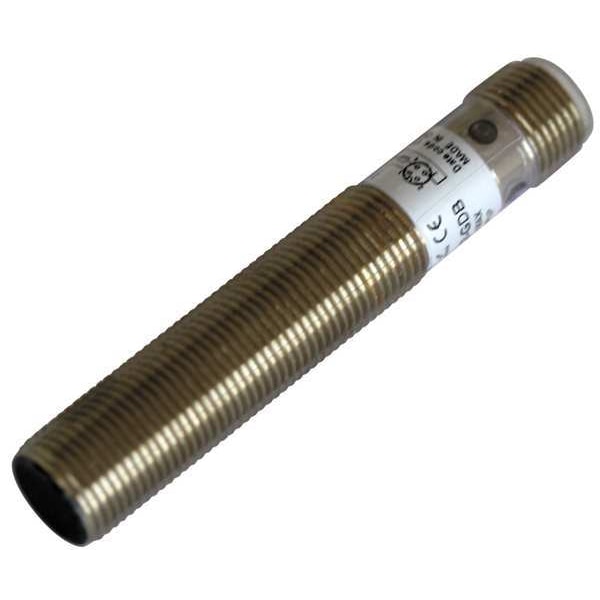

Eaton Cylindrical, Inductive Proximity Sensor, 8 mm Dia., Brass, 2 m, Bare Wire, 3 Wires, Shielded E57-08GS01-C - main

Cylindrical, Inductive Proximity Sensor, 8 mm Dia., Brass, 2 m, Bare Wire, 3 Wires, Shielded

  • Mfr # E57-08GS01-C

  • Zoro # G8984762

product price: $121.99
/ea
Free Shipping & Returns

Key Features

Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
10 to 30V DC
Length
45 mm
Width
0.31 in
Depth
1.77 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
E57-08GS01-C
Zoro #
G8984762
UPC #
782114288498
Country of Origin
China

Dimensions

Length
45 mm
Width
0.31 in
Depth
1.77 in
Overall Diameter
8 mm
Cable Length
2 m
Overall Height
70 mm

Details

Item
Proximity Sensor
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
10 to 30V DC
Proximity Sensor Electrical Connection
2m Cable
Proximity Sensor Operating Frequency
2,000 Hz
Max. Current Load
100mA
Description/Special Features
360 Degrees Viewable LED Output Indication
Operating Temp. Range
-13 Degrees to 158 Degrees F
Standards
CE, CSA, UL Listed
Electrical Connection
Bare Wire
Series
E57
Cable Type
Polyvinyl Chloride (PVC)
Maximum DC Current
100 mA
Accuracy
< 1.0% sensing range
Contact Rating
100 mA at 10-30 Vdc
Environmental Rating
IP67, IP69K
Protection
Short circuit
Led Indicator
Output ON
Style
Cylindrical, Inductive
Output Circuit Contact Form
NO
Includes Indicator Lights
Indicator Lights Included
Output Circuit Number of Wires
3
Sensing Distance - Maximum
1 mm
Body Material
Brass
DC Voltage Rating
10-30V DC
NEMA Enclosure Rating
12, 13, 4, 4X, 6, 6P
Sensing Face Shielding
Shielded
Operating Temperature - Maximum
158 Degrees F
Features
Short Circuit Protection
Body Finish
Nickel Plated
Switching Frequency
2,000 Hz
Output Circuit Type
NPN
AC Voltage Rating
Not Rated
Electrical Installation Type
Prewired Cable
Operating Temperature - Minimum
-13 Degrees F
Load Current - Maximum
200 mA

Description

Inductive Cylindrical Proximity Sensor, Inductive, 8 mm, Proximity Sensor Power Requirement 10 to 30V DC, Shielded, Proximity Sensor Operating Frequency 2,000 Hz, Proximity Sensor Output Circuit Type 3 Wire NPN, Max. Detecting Distance 1 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, NEMA Rating 6P, IP Rating IP67, IP69K, Case Material Nickel Plated Brass, Length 45 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 100mA
