Shop TELEMECANIQUE SENSORS

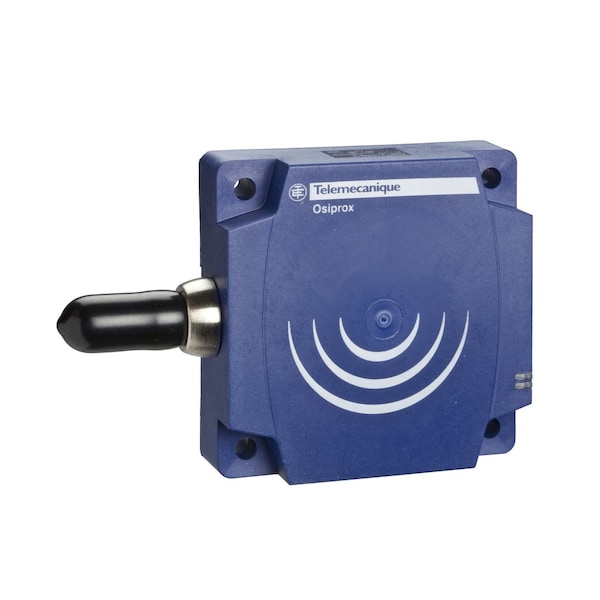

Inductive, Rectangular Proximity Sensor, PBT, M12, 3 Wires, Shielded

  • Mfr # XS8D1A1PAM12
  • Zoro # G0564229
product price:
$
192.99
/ea
Free Shipping & Returns

Key Features

Style
Inductive, Rectangular
Proximity Sensing Method
Inductive
Body Material
PBT
Proximity Sensor Power Requirement
12 to 24V DC
Electrical Connection
M12
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
XS8D1A1PAM12
Zoro #
G0564229
UPC #
785901264422
Country of Origin
France

Dimensions

Length
80 mm
Width
80 mm
Depth
26 mm
Overall Width
80 mm
Overall Height
80 mm
Overall Depth
26 mm
Fits Chest Size
Overload Protection, Reverse Polarity Protection, Short Circuit Protection

Details

Item
Proximity Sensor
Style
Inductive, Rectangular
Proximity Sensing Method
Inductive
Body Material
PBT
Proximity Sensor Power Requirement
12 to 24V DC
Electrical Connection
M12
Output Circuit Type
PNP
Output Circuit Number of Wires
3
Sensing Face Shielding
Shielded
Sensing Distance - Maximum
60 mm
AC Voltage Rating
Not Rated
DC Voltage Rating
12-24V DC
Output Circuit Contact Form
NO
Standards
CE, CSA, Ecolab, UL Listed
Proximity Sensor Electrical Connection
Male Connector M12, 4 Pins
Proximity Sensor Operating Frequency
Less than Or Equal to 150 Hz
Operating Temp. Range
-25 Degrees to 70 Degrees C
Description/Special Features
Frontal Detection Face
Max. Current Load
10 mA
IP Rating
IP67
Application
general purpose
Features
Overload Protection, Reverse Polarity Protection, Short Circuit Protection
Series
XS8
Maximum Voltage Drop
<2 V closed)
Supply Voltage Limits
10-36 V DC
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Switching Capacity
<= 200 mA DC overload and short-circuit protection
Maximum Delay First Up
10 ms
Storage Temp. Range
-40-85 °C
Differential Travel
1...15% of Sr
Maximum Delay Response
0.3 ms
Body Type
fixed
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Maximum Delay Recovery
6 ms
Operating Temperature - Minimum
-13 Degrees F
Sensing Method
Inductive
Operating Temperature - Maximum
158 Degrees F
Number of Pins
4
Electrical Installation Type
Direct Connector
Includes Indicator Lights
No Indicator Lights Included
Switching Frequency
150 Hz
Container Type
Rectangular

Description

Inductive Rectangular Proximity Sensor, IP Rating IP67, Standards CE, CSA, Ecolab, UL Listed
