  11. Cylindrical, Inductive Proximity Sensor, 8 mm Dia., Brass, M12, 3 Wires, Unshielded

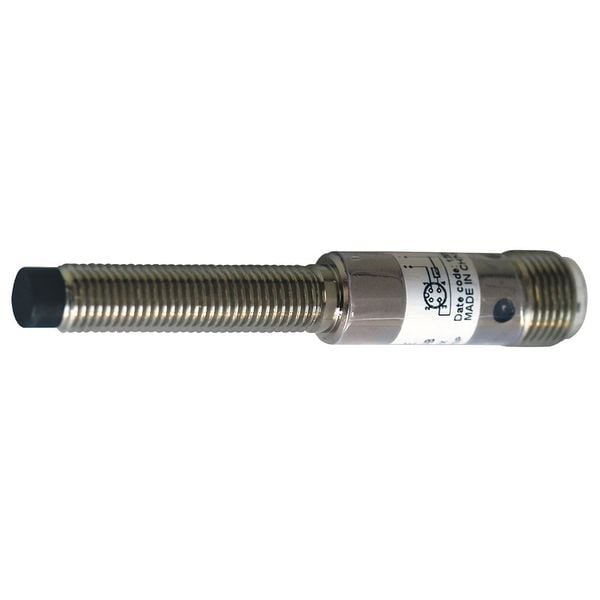

Eaton Cylindrical, Inductive Proximity Sensor, 8 mm Dia., Brass, M12, 3 Wires, Unshielded E57-08GU02-CDB - main

Cylindrical, Inductive Proximity Sensor, 8 mm Dia., Brass, M12, 3 Wires, Unshielded

  • Mfr # E57-08GU02-CDB

  • Zoro # G0114342

product price: $111.99
/ea
Free Shipping & Returns

Key Features

Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
10 to 30V DC
Length
69 mm
Width
0.31 in
Depth
0.31 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
E57-08GU02-CDB
Zoro #
G0114342
UPC #
782114664988
Country of Origin
China

Dimensions

Length
69 mm
Width
0.31 in
Depth
0.31 in
Product Height
2.75 in
Overall Diameter
8 mm
Overall Height
50 mm

Details

Item
Proximity Sensor
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
10 to 30V DC
Proximity Sensor Electrical Connection
4 Pin Micro DC Connector
Proximity Sensor Operating Frequency
2,000 Hz
Max. Current Load
100mA
Operating Temp. Range
-13 Degrees to 158 Degrees F
Description/Special Features
360 Degrees Viewable LED Output Indication
Standards
CE, CSA, UL Listed
Electrical Connection
M12
Series
E57
Protection
Short circuit protected
Environmental Rating
IP67, IP69K
Led Indicator
Output status: red
Connection
4-pin M12 connector
Maximum DC Current
100 mA
Contact Rating
100 mA at 30 Vdc
Accuracy
< 1%
Sensor Type
Inductive proximity
Sensing Distance - Maximum
2 mm
DC Voltage Rating
10-30V DC
Body Material
Brass
Features
Short Circuit Protection
Load Current - Maximum
200 mA
Output Circuit Number of Wires
3
Number of Pins
4
NEMA Enclosure Rating
12, 13, 4, 4X, 6, 6P
Electrical Installation Type
Direct Connector
Output Circuit Type
NPN
Operating Temperature - Maximum
140 Degrees F
AC Voltage Rating
Not Rated
Body Finish
Nickel Plated
Style
Cylindrical, Inductive
Output Circuit Contact Form
NO
Operating Temperature - Minimum
32 Degrees F
Includes Indicator Lights
Indicator Lights Included
Switching Frequency
2,000 Hz
Sensing Face Shielding
Unshielded

Description

Inductive Cylindrical Proximity Sensor, Inductive, 8 mm, Proximity Sensor Power Requirement 10 to 30V DC, Unshielded, Proximity Sensor Operating Frequency 2,000 Hz, Proximity Sensor Output Circuit Type 3 Wire NPN, Max. Detecting Distance 2 mm, Proximity Sensor Electrical Connection 4 Pin Micro DC Connector, Output Mode NO, NEMA Rating 6P, IP Rating IP67, IP69K, Case Material Nickel Plated Brass, Length 69 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 100mA
