  6. Dc Power Supply, 100 to 240 V AC, 24V DC, 240W, 10, Din Rail

This item is Discontinued.

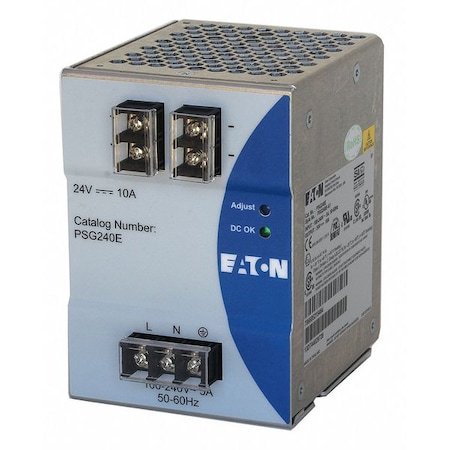

Eaton Dc Power Supply, 100 to 240 V AC, 24V DC, 240W, 10, Din Rail PSG240E

Dc Power Supply, 100 to 240 V AC, 24V DC, 240W, 10, Din Rail (Discontinued)

  • Mfr # PSG240E
  • Zoro # G8569373
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PSG240E
Zoro #
G8569373
UPC #
786685215464
Country of Origin
Thailand

Dimensions

Height
4.69 in
Width
3.35 in
Depth
4.76 in
Product Height
4.67 in
Overall Width
3.35 in
Overall Height
4.67 in
Overall Depth
4.76 in

Details

Item
DC Power Supply
Input Voltage
100 to 240V AC
Output Voltage
24V DC
Power Rating
240W
Output Amps
10
Mounting
DIN Rail
Case Material
Aluminum Case
Phase - Electrical
Single
Style
Switching
Hz
50 to 60 Hz
Hold Up Time
Greater Than 22 msec
Series
PSG
NEMA Rating
1
Status Indicator
LED/DC OK Signal
Operating Temp. Range
-20 Degrees to 80 Degrees C
Peak Amps
15
Standards
CE, CSA, cUL, cULus/UL 60950-1, EN, German Safety, IEC, RoHS, UL 508
IP Rating
IP20
Features
Din Rail Mounting, Industrial Power Supply, Low Output Noise, Overvoltage And Short Circuit Protection, Screw Terminal Connections, Ultra Slim Footprint
Output Noise
Less Than 50mV
Temp. Range
-20 to 75°C
Amps
2.9 A
Connection
Screw
Voltage
85 to 264V AC, 100 to 375V DC
Product Name
Eaton PSL low-profile power supply
Special Features
Finger Safe, Varistor Transient Surge Voltage
Certifications
CSA Certified;cULus/UL 60950-1;UL 508;EN Listed;IEC Rated;cUL Certified
Voltage Rating
85-264 Vac, 100-375 Vdc
Terminals
Heavy-duty screw
Power Consumption
240 W
Operating Temperature - Max
75 °C
Enclosure Material
Aluminum
Compliances
German Safety;CE Marked
Operating Temperature - Min
-20 °C
Frequency Rating
47-63 Hz
Rated Operational Current
2.9 A input;15 A surge;10 A output
Phase
Single
Output Noise - Maximum
50 mV
Hold Up Time - Minimum
22 msec
Wire Connection Type
Screw Terminals
Power Supply Style
Switching
NEMA Enclosure Rating
1
Output Voltage - Maximum
24 V DC
Operating Temperature - Minimum
-4 Degrees F
Current - Output
10 A
Output Power - Rated
240 W
Manufacturer Warranty
1 yr Installation, 18 mo Shipment
Input Frequency - Minimum
47 Hz
Current - Peak
15 A
Input Frequency - Maximuim
63 Hz
Operating Temperature - Maximum
167 Degrees F
Housing Material
Aluminum

Description

DC Power Supply, Input Voltage 100 to 240V AC, Output Voltage 24V DC, Power Rating 240W, Output Amps 10, Mounting DIN Rail, Switching, Case Material Aluminum Case, Height 4.69 in, Width 3.35 in, Depth 4.76 in, Series PSG, Hz 50 to 60 Hz, Phase - Electrical Single, Peak Amps 15, IP Rating IP20, Output Noise Less Than 50mV, Hold Up Time Greater Than 22 msec, Status Indicator LED/DC OK Signal, NEMA Rating 1
