  11. Diffuse Photoelectric Sensor, Bare Wire, Right Angle, Rectangular, Selectable Light On/Dark On, NPN and PNP

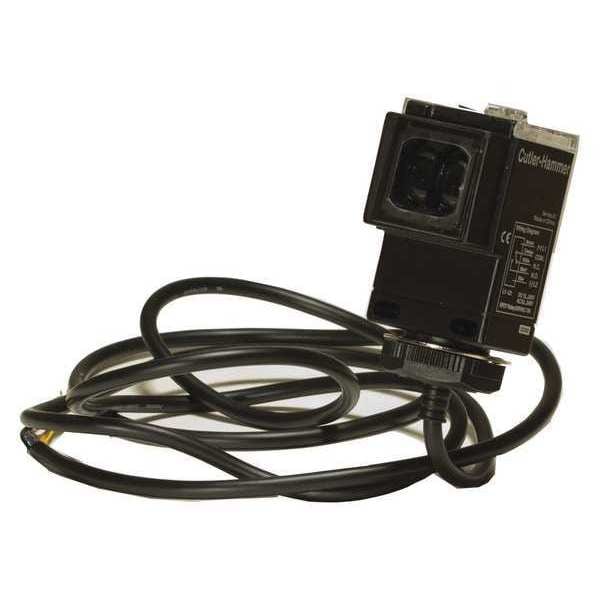

Eaton Diffuse Photoelectric Sensor, Bare Wire, Right Angle, Rectangular, Selectable Light On/Dark On, NPN and PNP 1351E-6517 - main

Diffuse Photoelectric Sensor, Bare Wire, Right Angle, Rectangular, Selectable Light On/Dark On, NPN and PNP

  • Mfr # 1351E-6517

  • Zoro # G0870204

product price: $229.99
/ea
Free Shipping & Returns

Key Features

Width
1.81"
Depth
1.91"
IP Rating
IP67, IP69K
Body Material
Plastic
Power Requirement
10 to 40VDC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1351E-6517
Zoro #
G0870204
UPC #
-
Country of Origin
China

Dimensions

Width
1.81"
Depth
1.91"
Length
3.46"
Min. Object Size
Adjustable By Changing Gain
Depth - Rectangular Photoelectric Sensor
48 mm
Width - Rectangular Photoelectric Sensor
46 mm
Height - Rectangular Photoelectric Sensor
88 mm
Cable Length
2 m
Overall Height
46 mm
Product Width
1.91 in
Product Height
1.81 in
Product Length/Depth
3.46 in
Overall Depth
88 mm
Overall Width
49 mm

Details

Item
Photoelectric Sensor
IP Rating
IP67, IP69K
Body Material
Plastic
Power Requirement
10 to 40VDC
Max. Sensing Distance
3m
Max. Load Current
250 mA
Operating Frequency
250 Hz
Electrical Connection
Bare Wire
Standards
CSA Certified, RoHS
Power Requirement - Rectangular Photoelectric Sensor
10 to 40V DC
Operating Temp. Range
-25 Degrees to 55 Degrees C
Max. Sensing Distance - Rectangular Photoelectric Sensor
3 m
Light Source
Infrared LED
Sensing Method
Diffuse
Features
Output Short Circuit Protection, Overcircuit Protection, Reverse Polarity Protection
Response Time
2 msec
Contact Rating
250 mA at 10-40 Vdc
Enclosure Material
Fiberglass reinforced plastic
LED indicator
Power: yellow
Cable type
Polyvinyl Chloride (PVC)
Contact configuration
NPN/PNP open collector
Protection
Output short circuit, overcircuit and reverse polarity
Type
Photoelectric Sensor
Input voltage
10-40 Vdc
Maximum DC current
250 mA
Load Current - Maximum
250 mA
Electrical Installation Type
Prewired Cable
Emitted Sensor Light
Infrared
Series
Enhanced 50
Includes Indicator Lights
Indicator Lights Included
Operating Mode
Selectable Light On/Dark On
Output Circuit Type
NPN and PNP
Sensing Distance - Maximum
3 m
Orientation
Right Angle
Operating Temperature - Minimum
-13 Degrees F
DC Voltage Rating
10-40V DC
Operating Temperature - Maximum
131 Degrees F
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4, 4X, 6
Style
Rectangular
Switching Frequency
250 Hz

Description

Photoelectric Sensor, Operating Mode - Photoelectric Sensor Selectable Light On/Dark On
