Shop EATON

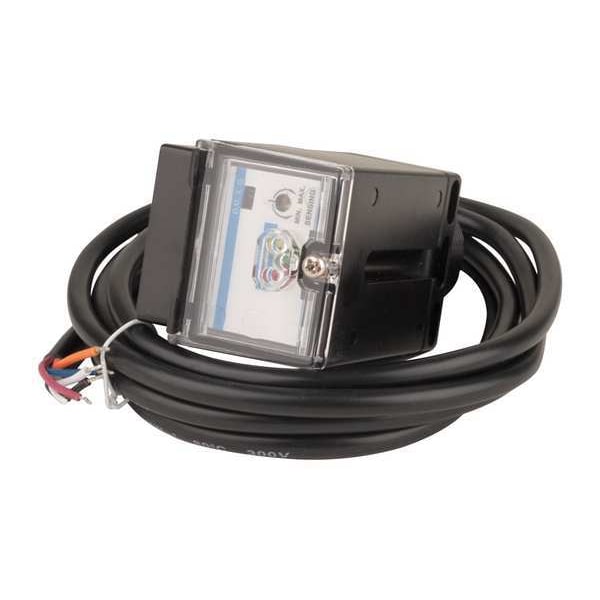

Diffuse Photoelectric Sensor, Bare Wire, Right Angle, Rectangular, Selectable Light On/Dark On, SPDT

  • Mfr # 1351E-6514

  • Zoro # G0720693

product price:
$
205.99
/ea
Free Shipping & Returns

Key Features

Sensing Method
Diffuse
Electrical Connection
Bare Wire
Style
Rectangular
Width
1.81"
Orientation
Right Angle
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1351E-6514
Zoro #
G0720693
UPC #
-
Country of Origin
China

Dimensions

Width
1.81"
Depth
1.91"
Cable Length
2 m
Length
3.46"
Height - Rectangular Photoelectric Sensor
88 mm
Min. Object Size
Adjustable By Changing Gain
Width - Rectangular Photoelectric Sensor
46 mm
Depth - Rectangular Photoelectric Sensor
48 mm
Overall Height
46 mm
Product Length/Depth
3.46 in
Product Width
1.91 in
Product Height
1.81 in
Overall Depth
88 mm
Overall Width
49 mm

Details

Item
Photoelectric Sensor
Sensing Method
Diffuse
Electrical Connection
Bare Wire
Style
Rectangular
Orientation
Right Angle
Operating Mode
Selectable Light On/Dark On
IP Rating
IP67, IP69K
Output Circuit Type
SPDT
AC Voltage Rating
24-240V AC
DC Voltage Rating
12-240V DC
Standards
CSA Certified, RoHS
Features
Output Short Circuit Protection, Overcircuit Protection, Reverse Polarity Protection
Max. Sensing Distance
3m
Power Requirement - Rectangular Photoelectric Sensor
24 to 240V AC/12 to 240V DC
Operating Frequency
33 Hz
Body Material
Plastic
Max. Sensing Distance - Rectangular Photoelectric Sensor
3 m
Light Source
Infrared LED
Operating Temp. Range
-25 Degrees to 55 Degrees C
Max. Load Current
3 A
Power Requirement
24 to 240VAC/12 to 240VDC
Response Time
15 msec
Protection
Output short circuit, overcircuit and reverse polarity
Type
Photoelectric Sensor
Enclosure Material
Fiberglass reinforced plastic
Cable type
Polyvinyl Chloride (PVC)
Contact Rating
3A at 240V
Maximum AC current
3A
LED indicator
Alignment: red
Contact configuration
SPDT form C relay
Input voltage
24-240 Vac, 12-240 Vdc
Electrical Installation Type
Prewired Cable
Operating Temperature - Maximum
131 Degrees F
Sensing Distance - Maximum
3 m
Switching Frequency
33 Hz
Includes Indicator Lights
Indicator Lights Included
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4, 4X, 6
Load Current - Maximum
3,000 A
Emitted Sensor Light
Infrared
Operating Temperature - Minimum
-13 Degrees F
Series
Enhanced 50

Description

Photoelectric Sensor, Operating Mode - Photoelectric Sensor Selectable Light On/Dark On
