  8. Disconnect Switch, Nonfusible, DPST, Single Phase, NEMA 3R, Indoor/Outdoor, Steel

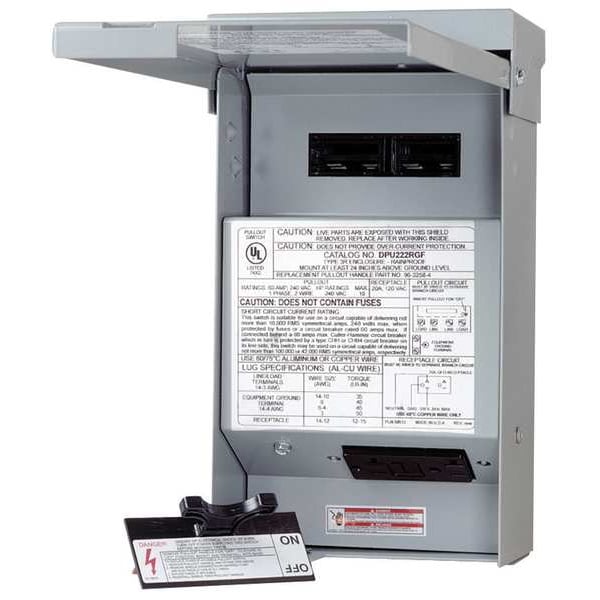

Eaton Disconnect Switch, Nonfusible, DPST, Single Phase, NEMA 3R, Indoor/Outdoor, Steel DPU222RGF20 - main

Disconnect Switch, Nonfusible, DPST, Single Phase, NEMA 3R, Indoor/Outdoor, Steel

  • Mfr # DPU222RGF20

  • Zoro # G2537631

product price:  $177.99
/ea
Free Shipping & Returns

Key Features

Protection Method
Nonfusible
Contact Form
DPST
Current Rating
60 A
Phase
Single
Environment
Indoor/Outdoor
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DPU222RGF20
Zoro #
G2537631
UPC #
786685423388
Country of Origin
United States

Dimensions

Depth
4 13/32 in
Width
6 39/64 in
Height
11 39/64 in
Wire Size
3 AWG, 4 AWG, 5 AWG, 6 AWG, 7 AWG, 8 AWG, 9 AWG, 10 AWG, 11 AWG, 12 AWG, 13 AWG, 14 AWG
Product Width
4.75 in
Product Height
13 in
Product Length/Depth
7.5 in

Details

Item
Disconnect Switch
Protection Method
Nonfusible
Contact Form
DPST
Current Rating
60 A
Phase
Single
Environment
Indoor/Outdoor
Enclosure Type
NEMA 3R
HP
10 HP @ 240 V
Voltage
240 V
Housing Material
Steel
Standards
CSA Certified, UL Listed
IP Rating
14
Max. HP @ 240V
10 hp
Fusible / Nonfusible
Nonfusible
Short Circuit Protection
None
Metallic / Non-Metallic
Metallic
Duty
General
Number of Poles
2
Receptacle Type
20AGFI
Includes
GFCI Receptacle
Amps
60 A
Number of Wires
3
Receptacle
20 A ground fault receptacle
Features
1in Knockouts On Bottom, Back, and Side, Wiring Space for Mounting with a Stud Gun (Single Keyhole, Two or Three Point Mounting), Copper-Rated Line and Load Lugs, Protective Shield
Switch Design
Pull-out
Horsepower @ 240V AC
10 hp
For Environment
Indoor/Outdoor
Certifications
CSA Certified
Color
ANSI 61 gray
Product Name
Eaton air conditioning disconnect

Description

Air Conditioning Disconnect Switch, Contact Form DPST, Current Rating 60 A, Depth 7 1/2 in, Features 1in Knockouts On Bottom, Back, and Side, Wiring Space for Mounting with a Stud Gun (Single Keyhole, Two or Three Point Mounting), Copper-Rated Line and Load Lugs, Protective Shield, For Fuse Class Not Applicable, Height 13 in, Horsepower @ 120V AC 3 hp, Horsepower @ 240V AC 10 hp, Housing Material Galvanized Steel, Includes GFCI Receptacle, IP Rating IP14, NEMA Enclosure Rating 3R
