- MFR #
- 5P3000
- Zoro #
- G0462066
- UPC #
- 743172039644
- Country of Origin
- Unknown

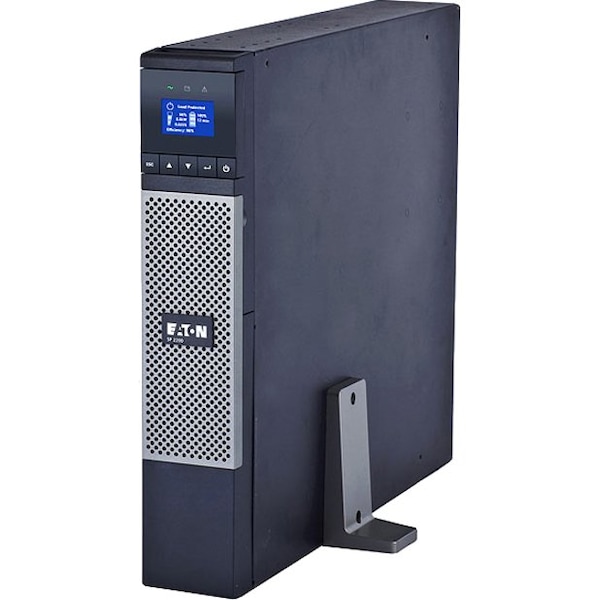

- Item
- UPS System
- UPS Type
- Line Interactive
- Power Rating
- 3000VA
- Mounting
- Tower
- Wattage
- 2700 W
- Input Voltage
- 120V AC
- Output Voltage
- 120V AC
- Backup Time (Half/Full Load)
- 10 min/4 min
- Number of Outlets
- 7
- Housing Color
- Black, Silver
- Battery Type
- Sealed Lead Acid (SLA)
- NEMA Receptacle Configuration
- (6) 5-20R; (1) L5-30R
- Standards
- cUL Listed
- Input Frequency Range
- 47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low-sensitivity mode
- Software Compatibility
- Eaton Intelligent Power Manager (included)
- Expansion Slots
- One slot; Gigabit Network Card (Network-M2) is optional
- Input connection
- L5-30P
- Compliances
- FCC Part 15 Class A Subpart B Sections 15.107b , 15.109b
- Package Contents
- 5P UPS|User manual CD|Intelligent Power Software Suite CD|Quick start guide|USB cable|RS-232 serial cable
- Input voltage range
- 89-151 Vac (adjustable to 70-153 Vac)
- Nominal Frequency
- 50-60 Hz
- BTU Rating
- Online: 305, Battery: 2047
- Battery management
- ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement)
- Altitude
- Up to 10,000 ft (3000m) without de-rating
- Relative Humidity
- 20-95% non-condensing
- Input Power Factor
- 0.9
- Battery replacement
- User replaceable
- Extended Battery Capability
- None; See Eaton 5PX UPS for extended runtimes options
- Output Frequency
- 50/60 Hz
- Output Voltage Range
- 102-132 Vac
- Efficiency
- 0.97
- Noise level
- <50 dB at 1 meter
- Temperature range
- 0° to 40°C (32° to 104°F)
- Form factor
- Tower
- Communication
- 1 USB HID compliant port + 1 RS232 serial port and relay contacts (USB and RS232 ports cannot be used simultaneously)
