This item is Discontinued.

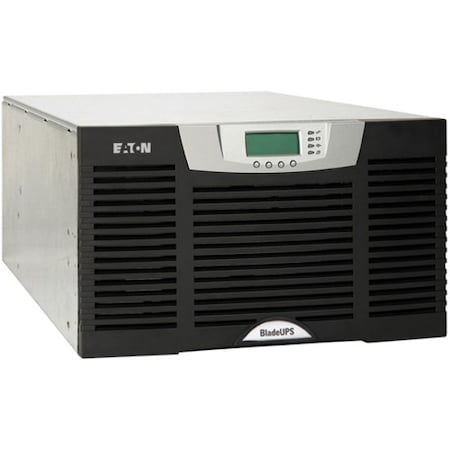

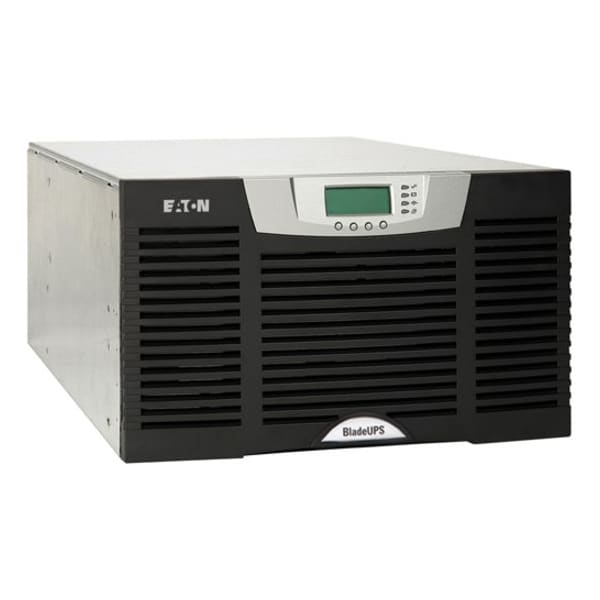

Eaton Eaton Bladeups 12Kw Power Module ZC121P060100000

Eaton Bladeups 12Kw Power Module (Discontinued)

  • Mfr # ZC121P060100000
  • Zoro # G0213837
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
ZC121P060100000
Zoro #
G0213837
UPC #
743172019547
Country of Origin
Unknown

Dimensions

Width
17.4 IN
Height
10.3 IN
Length
26 IN
Input Cord Length
1 ft

Details

Battery Type
Sealed, lead-acid, maintenance-free - VRLA
Output Waveform
Sinusoidal
Battery Quantity
40
Output Frequency
50/60 Hz
Max Electric Current
36A
Expansion Slots
(1) available, one slot filled with HotSync CAN Card
[ETIM] Max Volt Dist Output(Linear Load)
<3%
Ethernet Interface
No
Communication
Serial
Input Frequency Range
45-65 Hz
Battery Form Factor
Battery pack with 10 internal batteries
Extended Battery Capability
Yes, add up to four additional 3U battery modules; 120 minutes at 50% load; 55 minutes at 100% load
Package Contents
BladeUPS module, rack mount kit, batteries, communication card options, manual, software CD, Firmware CD, Serial communication cable
Software Compatibility
UPS ships with Software Suite CD containing Intelligent Power Manager supervisory software and Intelligent Power Protector protection software
Output Voltage Range
180-228 Vac, Ph-Ph
Battery Rating
23 w/cell, 5AH, 240 Vdc string
Receptacle
560C9 or 460C9
Phase (Input)
Three-phase
Rack Mounting Kit
Yes
Type
UPS
Output Power Factor
1
Max Number of Battery Packs
4 internal packs, 4 external EBMs per UPS module
Runtime at Full Load
4.7 min
Efficiency
Up to 97% in HE Mode
Input Nominal Voltage
208Y/120V
Nominal Frequency
180-265 Vac
[ETIM] Efficiency (Eco-Mode)
97.9
Input Power Factor
>0.97 with IT loads (PFC power supplies, Load dependent in HE Mode)

Restrictions

This item has been restricted from sale in the following states: CA
